LS037V7DW03A Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

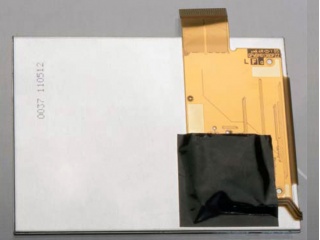

LS037V7DW03A is a 3.7" diagonal CG-Silicon display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 60°C , a storage temperature range of -20 ~ 70°C . It's general features are summarized in the following: Portrait type, Transflective, WLED Backlight, U/D,L/R Reverse , VGA/QVGA mode selectable,8/262K color selectable. Compare to LS037V7DW03, LS037V7DW03A add protective tape over part of the flexible circuit board.. Based on its features, we recommend that this model be applied to Handheld & PDA etc.
Technical Data:
Part #：
LS037V7DW03A
Brand：
SHARP
Size：
3.7 inch"
Resolution：
480×640
Interface：
3.7 inch
Technology：
Transflective
Brightness：
200 cd/m² (Typ.)
Operating Tem：
-10 ~ 60 °C
Storage Tem：
-20 ~ 70 °C
