MiP Displays (Memory-in-Pixel) are a type of display technology that integrates memory directly into each pixel of the display. This innovation allows each pixel to hold and maintain its color state independently, even when the display is not actively powered or refreshed. MiP displays offer several unique advantages, especially for low-power, always-on applications.
Key Features of MiP (Memory-in-Pixel) Displays:

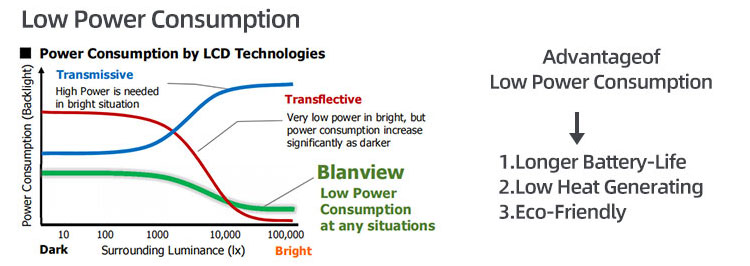

Low Power Consumption
One of the most significant advantages of MiP displays is their ultra-low power consumption. Since each pixel stores its color information in a built-in memory cell, the display does not need continuous refreshing or constant power to maintain the image. This makes MiP displays ideal for devices that need to be always on but with minimal power usage, such as electronic shelf labels, smartwatches, or wearable devices.
Memory Storage at the Pixel Level
Each pixel in a MiP display has its own memory. This means that once an image or text is written to the display, it stays there without requiring constant refreshing. The memory is typically non-volatile, meaning it retains the image even when the power is turned off. This feature is a key differentiator from traditional displays, which typically require constant power to maintain the image on the screen.
Bistable Technology
MiP displays are bistable, meaning they can display an image or text indefinitely without power, as long as the information isn't changed. This makes them particularly well-suited for applications where the screen needs to show static content over long periods without draining the battery.
High Contrast and Readability
MiP displays often have high contrast and excellent readability, particularly in bright light or outdoor environments. Many MiP displays are based on electrophoretic or electrowetting technologies, which are similar to the technology used in e-paper or e-ink displays. This allows for a very clear, paper-like appearance, with deep blacks and high contrast ratios.
Fast Refresh Rates for Simple Graphics
While MiP displays are not as suitable for fast-moving video or high-refresh-rate graphics, they excel at displaying static or low-refresh-rate content, such as text, icons, or simple graphics. Refreshing a MiP display typically takes more time than conventional displays, but the trade-off is extremely low power consumption.
Flexible and Lightweight
MiP displays can be made on flexible substrates, making them suitable for applications where lightweight and flexible form factors are required, such as wearable devices, flexible signage, and various consumer electronics. This feature also allows for more creative and compact product designs.
No Backlight Required
Like e-ink displays, MiP displays do not require a backlight, as they rely on ambient light to make the display visible. This contributes to their low power consumption and makes them ideal for battery-powered applications.
Applications of MiP Displays:
Electronic Shelf Labels (ESL)
MiP displays are commonly used in retail environments for electronic shelf labels. These displays can show price tags, product names, or promotions and can update dynamically without requiring constant power. This is especially useful in retail stores with a large number of items to monitor and display.
Wearables (Smartwatches & Fitness Trackers)
Some smartwatches, fitness bands, and wearable health devices use MiP displays to show essential information (like time, heart rate, or notifications) without draining the battery. The always-on nature of MiP displays is ideal for devices that need to display static information but require extended battery life.
Smart Labels and Packaging
MiP displays are used in smart packaging to provide dynamic content like expiration dates, nutritional information, or other product details. They are low-power and can be integrated into thin, flexible materials, making them ideal for packaging that needs to display information without frequent power sources.
Portable Devices
Devices such as e-readers or low-power gadgets can use MiP displays for showing static or lightly animated content. MiP displays are well-suited for e-readers because they can show long-lasting, readable text with minimal battery consumption.
Public Information Displays
MiP technology can be used for outdoor or public information signs that display static messages, such as bus schedules, street signs, or event notices. The high contrast and ability to maintain the image without power make them ideal for applications that need to operate in bright outdoor environments.
Smart Business Cards or Digital Badges
MiP displays can be used for digital business cards or ID badges, where information needs to be displayed at all times but with minimal energy usage. This is ideal for situations where a small amount of static information needs to be shown, like a name, title, or company logo.
Toys and Consumer Electronics
Some consumer electronic devices, especially toys, use MiP displays to show simple graphics or messages. The low power and durability of MiP displays make them ideal for battery-operated gadgets and toys that require low-maintenance, long-lasting screens.
Industrial Applications
MiP displays can be used in industrial equipment or machinery to display data like temperature, status information, or alerts. Since these displays don't require constant power, they are great for industrial environments where machines are always on, but low energy consumption is important.
Smart Packaging and Logistics
In logistics and supply chain management, MiP displays can be used for tracking information on packaging, boxes, or pallets. These displays could show barcodes, shipping details, or other important data, making it easy for warehouses and stores to track goods efficiently.
Battery-Powered Sensors
MiP displays are often used in conjunction with battery-powered sensors in IoT applications. For example, a sensor might monitor temperature or air quality, and the MiP display can show the current reading or alert information, all while consuming very little power.
Types of MiP Displays:
Electrophoretic MiP Displays: These displays use the movement of charged particles in a liquid to form images or text. The particles can be black or white, creating high-contrast, bistable images.
Electrowetting MiP Displays: This technology uses the manipulation of oil and water droplets to change the colors of pixels. It's less common but still used in certain high-quality MiP displays.
Other Variants: Some MiP displays combine elements from e-paper or other low-power technologies to create different types of memory-in-pixel solutions.
Conclusion:
MiP displays represent a significant innovation in the world of low-power displays. By integrating memory into each pixel, they offer an energy-efficient way to maintain static or low-refresh-rate content for long periods without continuous power. This makes them especially useful for applications in retail, wearables, smart packaging, and more, where visibility and battery life are key considerations.
