LQ190E1LX75T Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

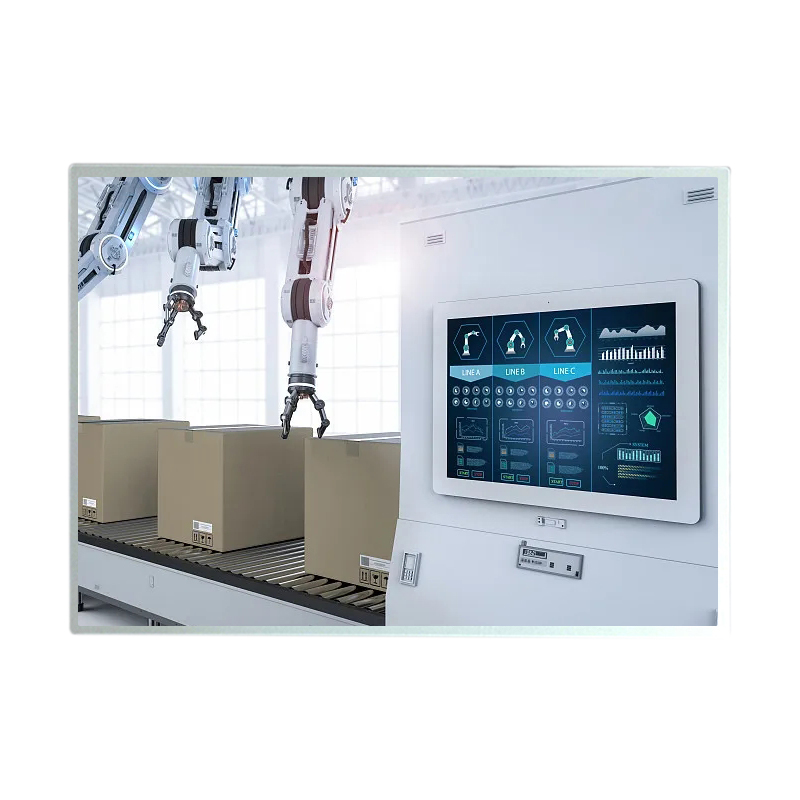

LQ190E1LX75T is a 19.0 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen.LQ190E1LX75T supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×323.6(H)×12(D) mm, viewing area size of 382.00(W)×307.55(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 1.30Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ190E1LX75T can provides 350 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms.
Technical Data:
Part #：
LQ190E1LX75T
Brand：
SHARP
Size：
19 inch"
Resolution：
1280x1024
Interface：
19 inch
Technology：
Transmissive
Brightness：
350 cd/m² (Typ.)
Operating Tem：
-20 ~ 70 °C
Storage Tem：
-25 ~ 70 °C
