LQ150X1LX95 Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

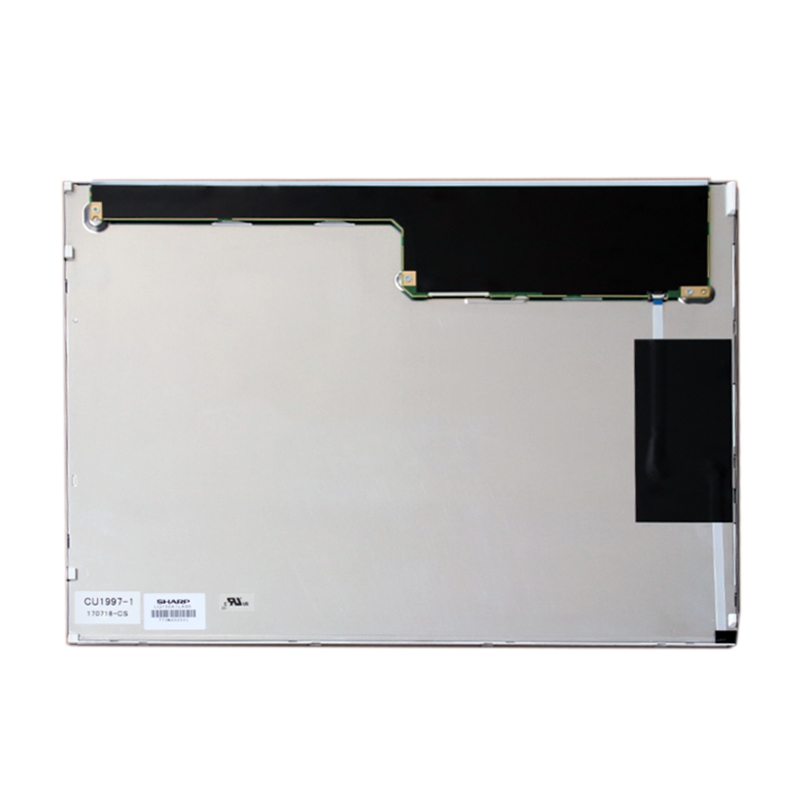

LQ150X1LX95 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen.LQ150X1LX95 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×10.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ150X1LX95 can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms.
Technical Data:
Part #：
LQ150X1LX95
Brand：
SHARP
Size：
15 inch"
Resolution：
1024×768
Interface：
15 inch
Technology：
Transmissive
Brightness：
400 (Typ.)
Operating Tem：
-20 ~ 70 °C
Storage Tem：
-25 ~ 70 °C
