LQ121K1LG58 Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

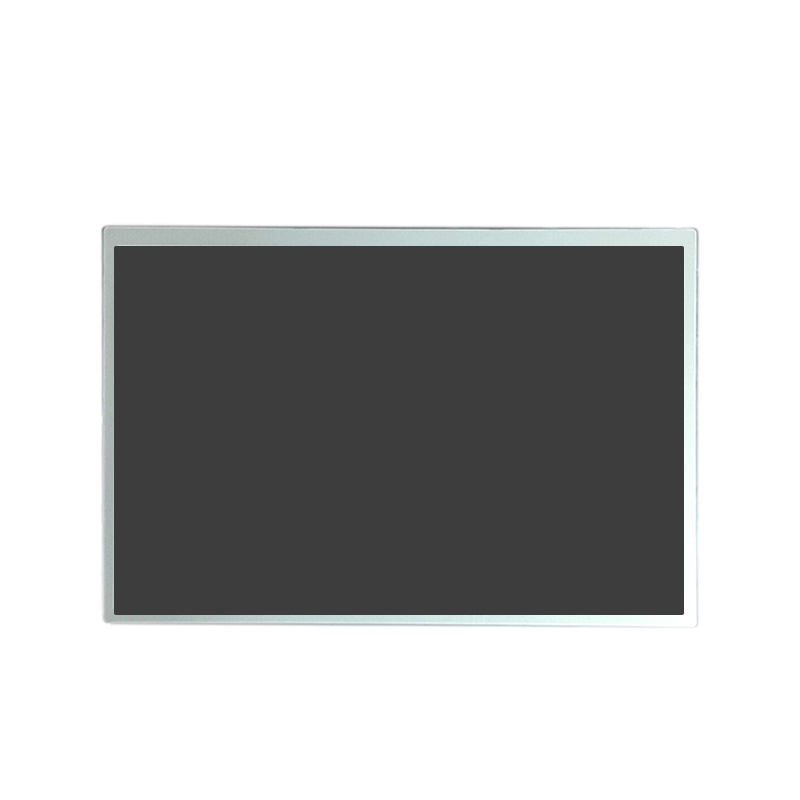

 LQ121K1LG58 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.LQ121K1LG58 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×9.6(D) mm, viewing area size of 264.3(W)×167.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 550g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ121K1LG58 can provides 700 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 70% (NTSC).
Technical Data:
Part #：
LQ121K1LG58
Brand：
SHARP
Size：
12.1 inch"
Resolution：
1280×800
Interface：
12.1 inch
Technology：
Transmissive
Brightness：
700 cd/m² (Typ.)
Operating Tem：
-30 ~ 80 °C
Storage Tem：
-30 ~ 80 °C
