TX26D206VM0BAA 10.3 Inch 1920×720 LVDS High Brightness 1200nits Wide Temperature LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > KOE > TX26D206VM0BAA

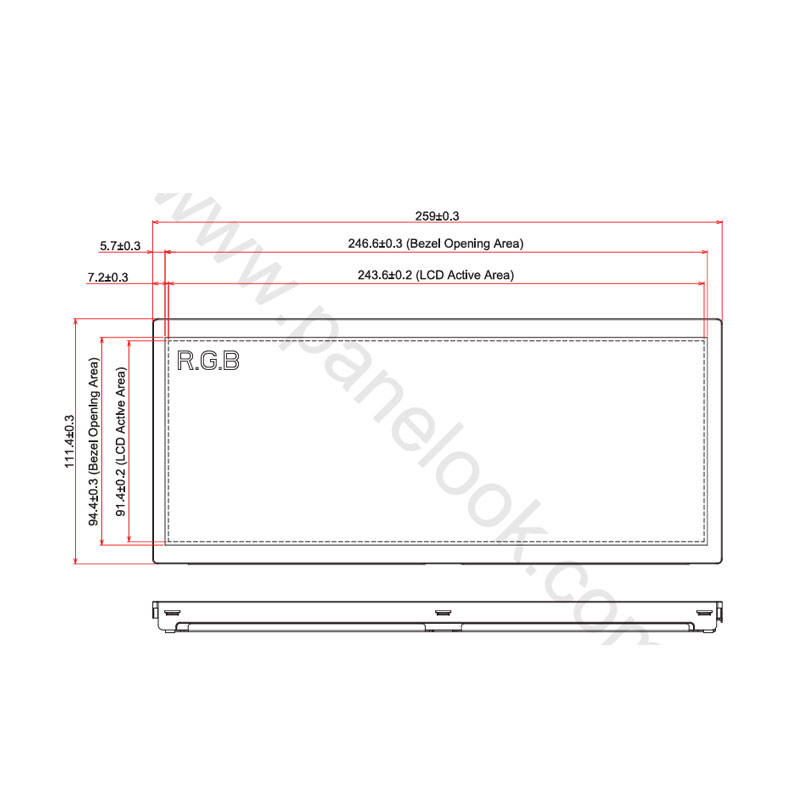

TX26D206VM0BAA is a 10.3 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TX26D206VM0BAA supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 243.648(W)×91.368(H) mm, outline size of 259(W)×111.4(H)×14.7(D) mm, viewing area size of 246.6(W)×94.4(H) mm, net weight of 430g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX26D206VM0BAA can provides 1200 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TX26D206VM0BAA utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

TX26D206VM0BAA

Brand：

KOE

Size：

10.3 inch"

Resolution：

1920×720

Interface：

LVDS (2 ch, 8-bit) , 50 pins Connector

Technology：

Transmissive

Brightness：

1000 cd/m² (Typ.)

Operating Tem：

-40~85°C

Storage Tem：

-40~90°C
