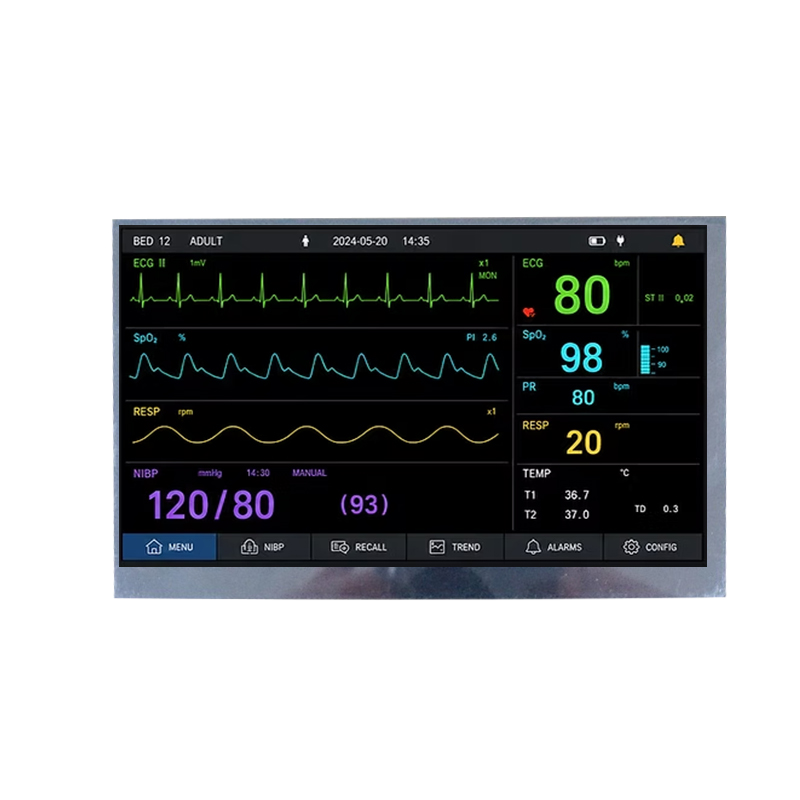

TX18D204VM0BAA 7 Inch TFT LCD Display 1920×1080 LVDS 600nits High Brightness LCD Display For Healthcare Medical Display Solution

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > KOE > TX18D204VM0BAA
TX18D204VM0BAA supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 313 PPI. As for mechanical detail, it features active area of 155.52(W)×87.48(H) mm, outline size of 169(W)×103(H)×7.5(D) mm, viewing area size of 158.5(W)×90.5(H) mm, net weight of 110g. As a IPS, Normally Black, Transmissive LCM product, TX18D204VM0BAA can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. TX18D204VM0BAA utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
TX18D204VM0BAA
Brand：
KOE
Size：
7 Inch"
Resolution：
1920×1080
Interface：
LVDS (1 ch,8-bit)
Technology：
Transmissive
Brightness：
600cd/m²
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
