9.2 Inch TFT LCD Display 1280×320 LVDS High Brightness 3500nits Wide Temperature Display TVTo920A1 For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > TVTo920A1

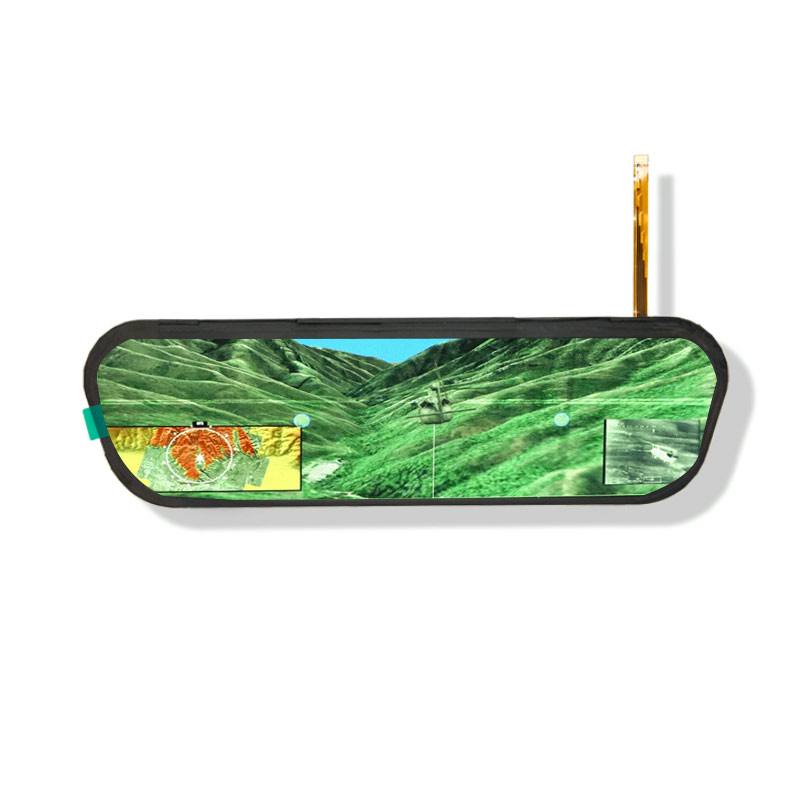

TVTo920A1 is a 9.2-inch diagonal TFT-LCD display product, featuring a transmissive display mode. It supports a resolution of 1280×320 with an aspect ratio of 4:1 (W:H). The panel adopts an LVDS interface for stable signal transmission. It offers an active area of 226.56 (W) × 56.64 (H) mm and an outline dimension of 238.63 (W) × 69.5 (H) mm. TVTo920A1 delivers high brightness of up to 3500 cd/m², making it suitable for outdoor and high ambient light environments such as aerospace displays. It provides wide viewing angles of 85/85/85/85 (L/R/U/D) for consistent image quality from all directions. Additionally, it supports a wide operating temperature range of -30°C to 80°C and storage temperature range of -30°C to 85°C, ensuring reliable performance in harsh environments. This model does not include a touch panel.
Technical Data:
Part #：
TVTo920A1
Brand：
YOURITECH
Size：
9.2 inch"
Resolution：
1280x320
Interface：
LVDS
Technology：
Transmissive
Brightness：
3500nits
Operating Tem：
-30~80°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
