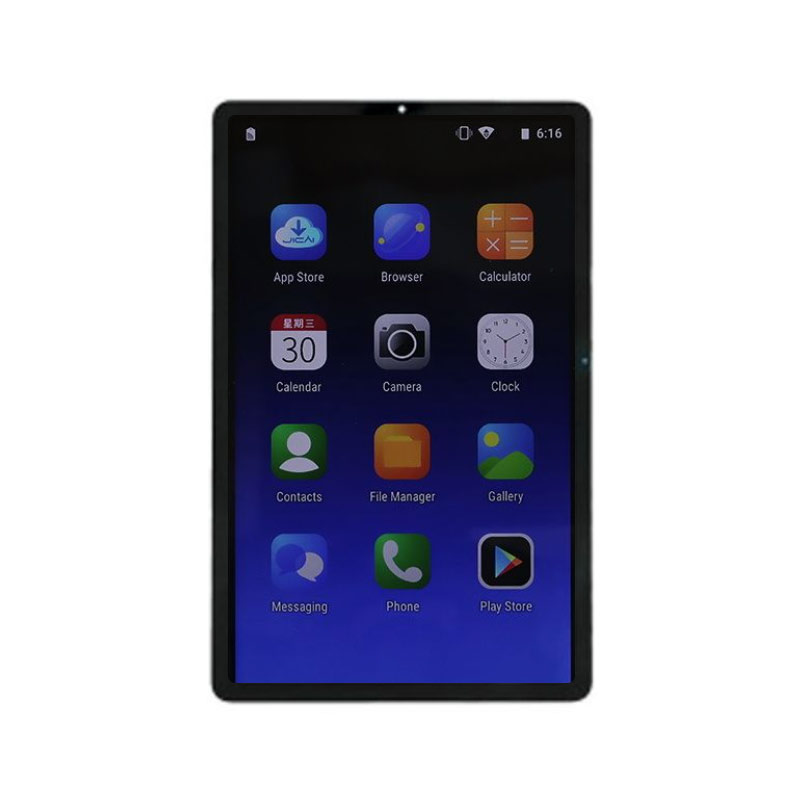

TV105WUM-LS0 10.5 Inch TFT LCD Display MIPI 1200×1920 LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > TV105WUM-LS0
TV105WUM-LS0 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 141.3(W)×226.08(H) mm, outline size of 158.48(W)×243.368(H) mm, with surface treament of Anti Fingerprint, net weight of 210±10g (Typ.). As a ADS, Normally Black, Transmissive Assembly product, TV105WUM-LS0 can provides 360 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td), 45 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TV105WUM-LS0 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 41 pins Connector with power supply voltage of 1.8/6/-6V (Typ.)(VDD/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
TV105WUM-LS0
Brand：
BOE
Size：
10.5 inch"
Resolution：
1200x1920
Interface：
MIPI (4 data lanes)
Technology：
Transmissive
Brightness：
360cd/m²
Operating Tem：
-20~60°C
Storage Tem：
-30~70°C
