TV084WUM-LS0 8.4 Inch TFT LCD Display MIPI 1200×1920 LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > BOE > TV084WUM-LS0

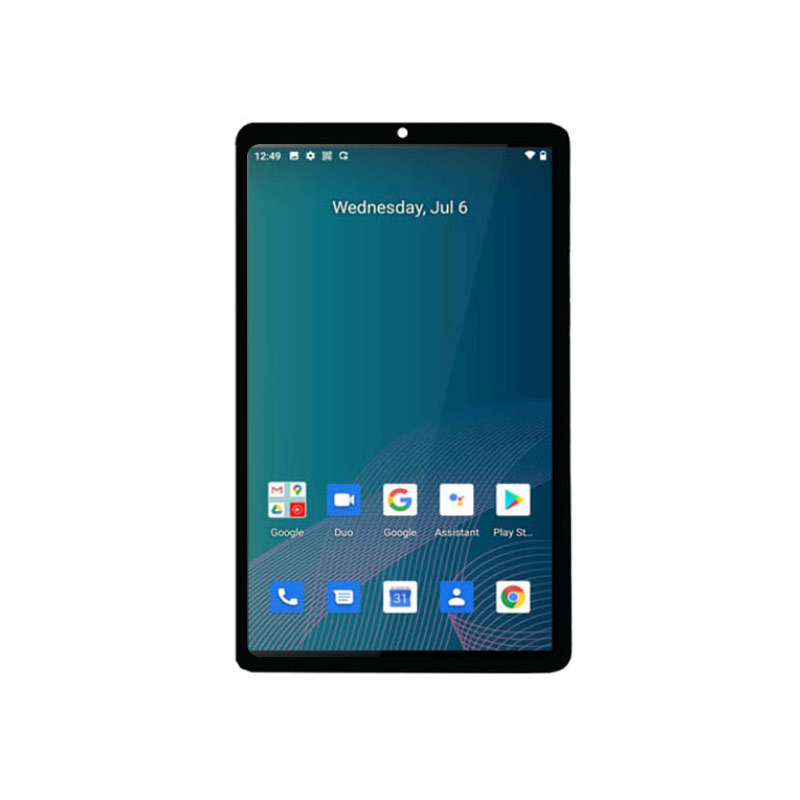

TV084WUM-LS0 is a 8.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch. TV084WUM-LS0 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 270 PPI. As for mechanical detail, it features active area of 112.68(W)×180.288(H) mm, outline size of 122.38(W)×199.088(H) mm, net weight of 120g (Typ.). As a HADS, Normally Black, Transmissive Assembly product, TV084WUM-LS0 can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 74% (NTSC). This product adopted 5 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TV084WUM-LS0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 70 pins Connector with power supply voltage of 1.8/5.8/-5.8V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

TV084WUM-LS0

Brand：

BOE

Size：

8.4 inch"

Resolution：

1200x1920

Interface：

MIPI (2 ch,4 data lanes)

Technology：

Transmissive

Brightness：

400(Typ.)

Operating Tem：

-20~85°C

Storage Tem：

-40~85°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
