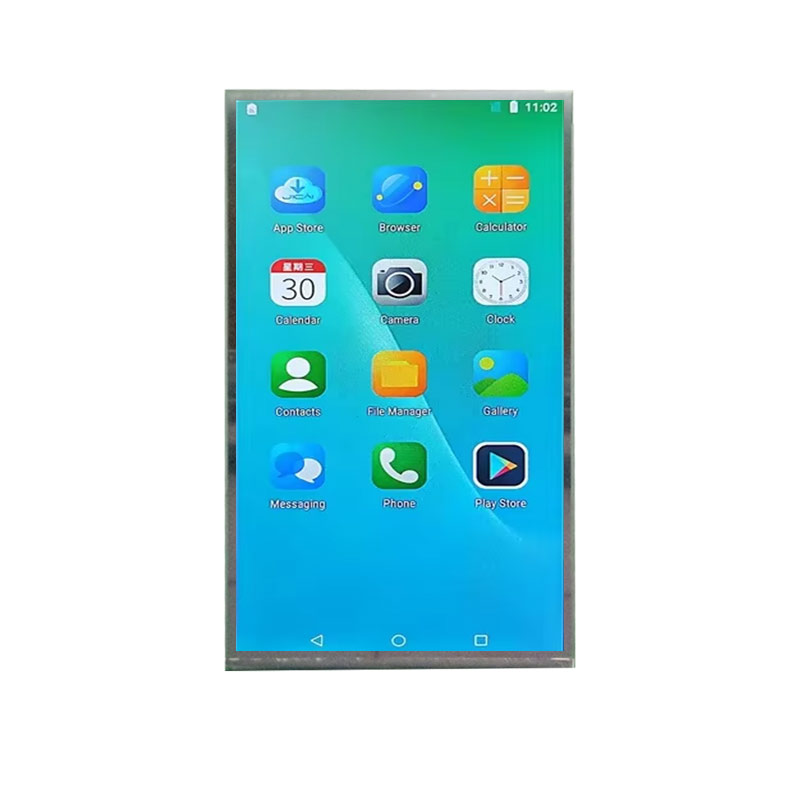

TS125QDM-LW7 12.5 Inch TFT LCD Display eDP (8 Lanes) 1600×2560 LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > BOE > TS125QDM-LW7

TS125QDM-LW7 is a 12.5 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch. TS125QDM-LW7 supports display 1600(RGB)×2560 (WQXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 168.18(W)×269.568(H) mm, outline size of 278.018(W)×172.98(H) mm, with surface treament of Hard coating. As a ADS, Normally Black, Transmissive Assembly product, TS125QDM-LW7 can provides 300 cd/m² display brightness 1300:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 23 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 96% (NTSC). This product adopted 6 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TS125QDM-LW7 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 70 pins Connector with power supply voltage of 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

TS125QDM-LW7

Brand：

BOE

Size：

12.5 inch"

Resolution：

1600x2560

Interface：

eDP (8 Lanes)

Technology：

Transmissive

Brightness：

300cd/m²

Operating Tem：

-30~60°C

Storage Tem：

-30~70°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
