TE110QDM-LL0 11 Inch TFT LCD Display 1600×2560 MIPI High Brightness 500nits LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > BOE > TE110QDM-LL0

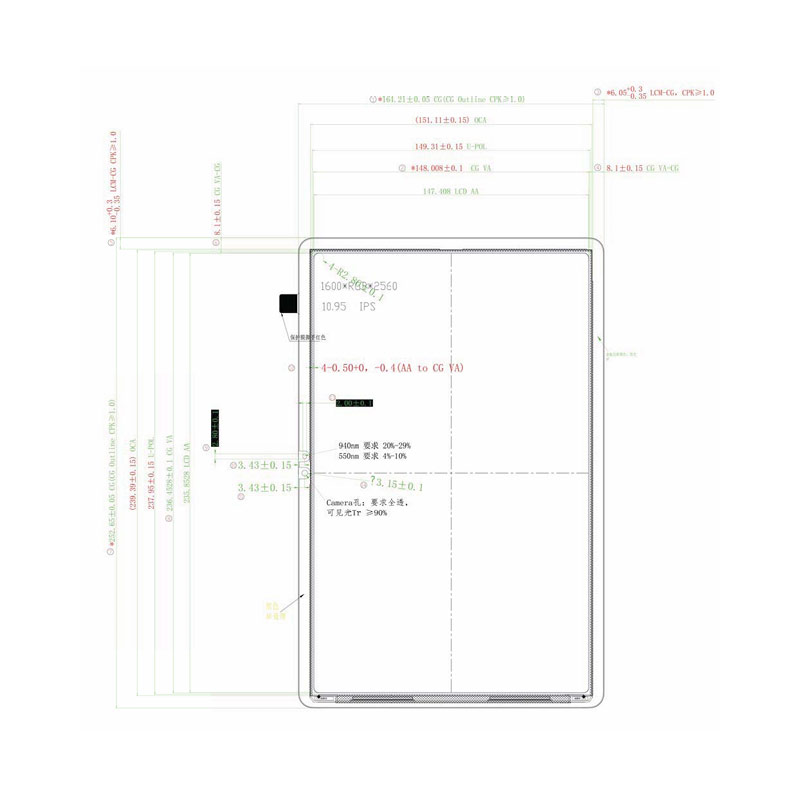

TE110QDM-LL0 is a 11.0 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch. TE110QDM-LL0 supports display 1600(RGB)×2560 (WQXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 275 PPI. It features active area of 147.408(W)×235.853(H) mm, outline size of 164.21(W)×252.65(H) mm, with surface treament of Clear, net weight of 200g (Max.). As a ADS, Normally Black, Transmissive Assembly product, TE110QDM-LL0 can provides 500 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Max.)(Tr+Td), 30 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 99% (sRGB). This product adopted 9S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. TE110QDM-LL0 utilizes MIPI (1 data lane) as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 1.8/6/-6V (Typ.)(VDDI/VSP/VSN). It's typical vertical frame rate (Fv) is 90Hz.

Technical Data:

Part #：

TE110QDM-LL0

Brand：

BOE

Size：

11 inch"

Resolution：

1600x2560

Interface：

MIPI (1 data lane)

Technology：

Transmissive

Brightness：

500(Typ.)

Operating Tem：

-20~60°C

Storage Tem：

-40~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
