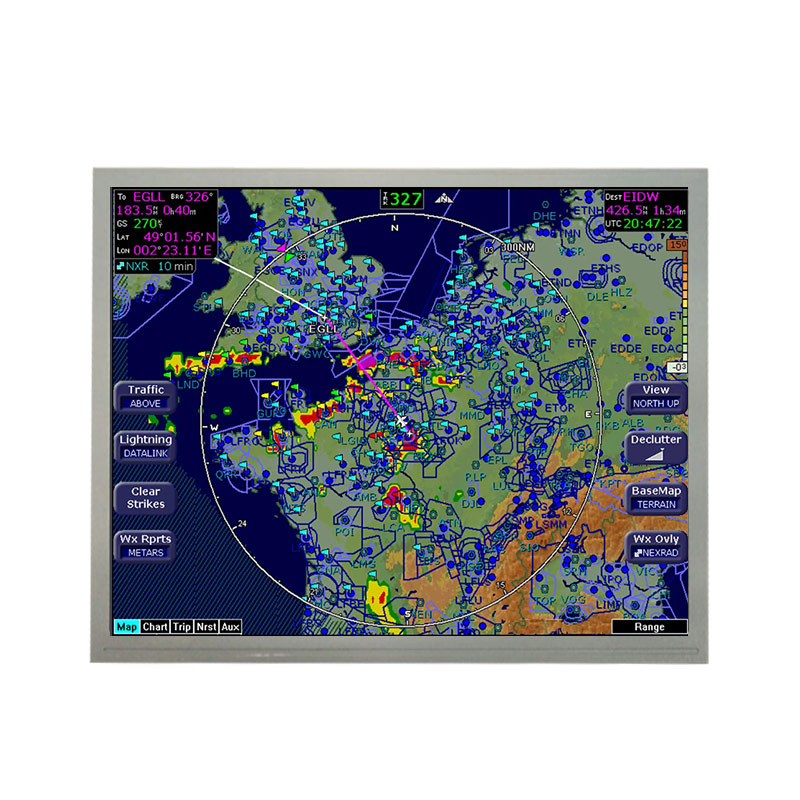

12.1 Inch 1024×768 LVDS High Brightness 1200nits Wide Temperature TFT LCD Display TCG121XGLPBPNN-AN40 For Marine Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > TCG121XGLPBPNN-AN40

TCG121XGLPBPNN-AN40 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. TCG121XGLPBPNN-AN40 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10.9(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, net weight of 555g. As a AWV, Normally Black, Transmissive LCM product, TCG121XGLPBPNN-AN40 can provides 1200 cd/m² display brightness 750:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 18/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 51% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. TCG121XGLPBPNN-AN40 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 80Hz.

Technical Data:

Part #：

TCG121XGLPBPNN-AN40

Brand：

YOURITECH

Size：

12.1 inch"

Resolution：

1024x768

Interface：

LVDS (1 ch,6/8-bit)

Technology：

Transmissive

Brightness：

1200cd/m²

Operating Tem：

-30~80°C

Storage Tem：

-30~80°C
