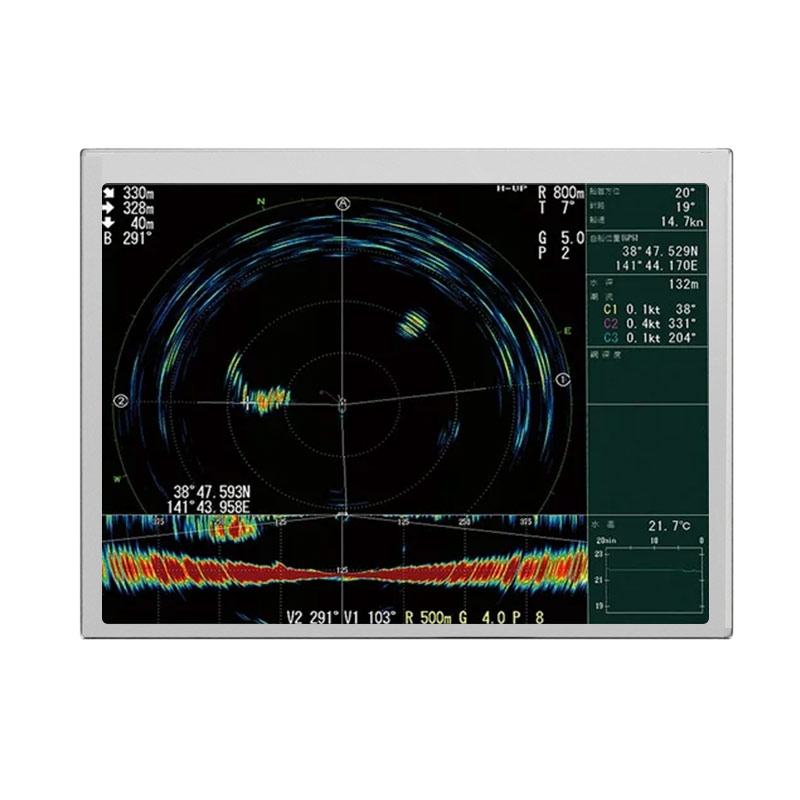

8.4 Inch 1024×768 LVDS High Brightness 1000nits Wide Temperature TFT LCD Display TCG084XGLAAPNN-AN00-S For Marine Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > TCG084XGLAAPNN-AN00-S

TCG084XGLAAPNN-AN00-S supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.8(W)×128.1(H) mm, outline size of 199.5(W)×149(H)×11(D) mm, viewing area size of 174.9(W)×132.2(H) mm, with surface treament of Antiglare, net weight of 313g (Typ.). As a AWV, Normally Black, Transmissive LCM product, TCG084XGLAAPNN-AN00-S can provides 1000 cd/m² display brightness 600:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. TCG084XGLAAPNN-AN00-S utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

TCG084XGLAAPNN-AN00-S

Brand：

YOURITECH

Size：

8.4 inch"

Resolution：

1024x768

Interface：

LVDS (1 ch,6/8-bit)

Technology：

Transmissive

Brightness：

1000nits

Operating Tem：

-30~80°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
