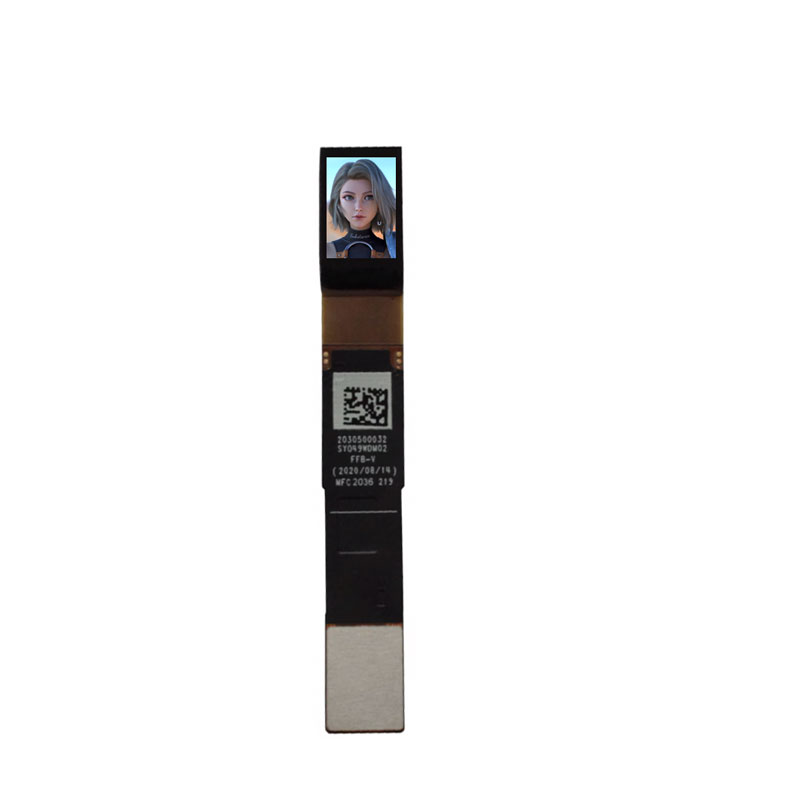

SY049LDM01 0.49 Inch Micro OLED Display 1920×1080 MIPI 3000nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > OTHERS > SY049LDM01
SY049LDM01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in Sub-Pixel Rendering, it's pixel density is 3692 PPI. As for mechanical detail, it features active area of 10.783(W)×6.065(H) mm, outline size of 15.68(W)×9.09(H)×1.6(D) mm, net weight of 1.00g (Max.). SY049LDM01 can provides 3000 cd/m² display brightness 50000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 10-bit gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 102% (NTSC). This product emiting itself . SY049LDM01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector. It's typical vertical frame rate (Fv) is 90Hz.
Technical Data:
Part #：
SY049LDM01
Brand：
OTHERS
Size：
0.49 inch"
Resolution：
1920x1080
Interface：
MIPI
Technology：
AM-OLED
Brightness：
3000(Typ.)
Operating Tem：
-20~70°C
Storage Tem：
-40~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
