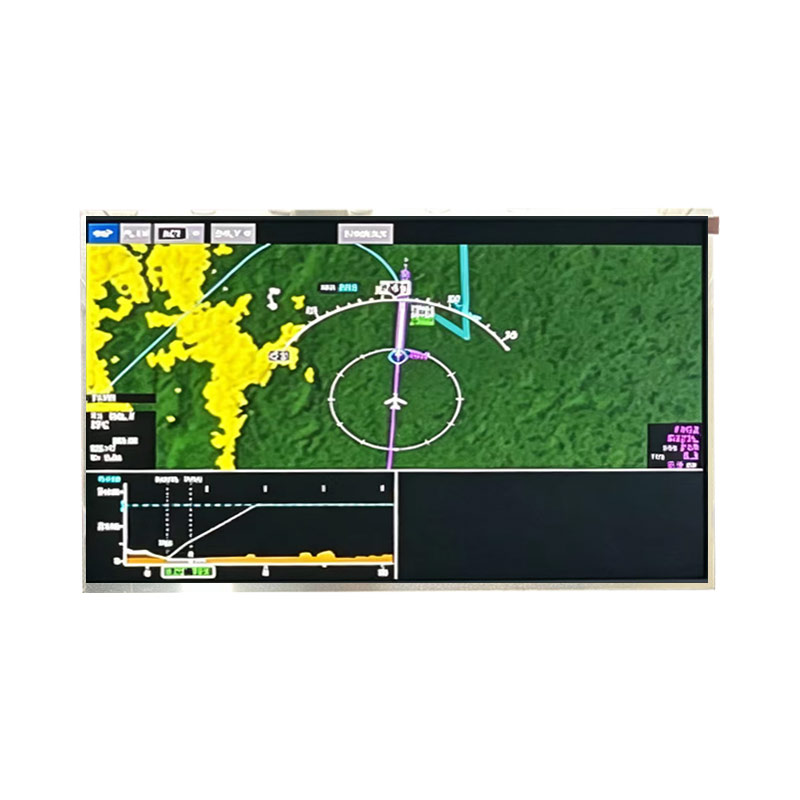

17.3 Inch 1920×1080 eDP High Brightness Wide Temperature TFT LCD Display P1730FHF1MA10 For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > TIANMA > P1730FHF1MA10

P1730FHF1MA10 is a 17.3 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, without backlight driver, without touch screen. P1730FHF1MA10 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 397.1(W)×234(H)×11.9(D) mm, viewing area size of 384.89(W)×217.81(H) mm, with surface treament of Antiglare, net weight of 781g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1730FHF1MA10 can provides 1200 cd/m² display brightness 1700:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. P1730FHF1MA10 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

P1730FHF1MA10

Brand：

TIANMA

Size：

17.3 inch"

Resolution：

1920x1080

Interface：

eDP (2 Lanes)

Technology：

Transmissive

Brightness：

1200nits

Operating Tem：

-30~80°C

Storage Tem：

-40~85°C
