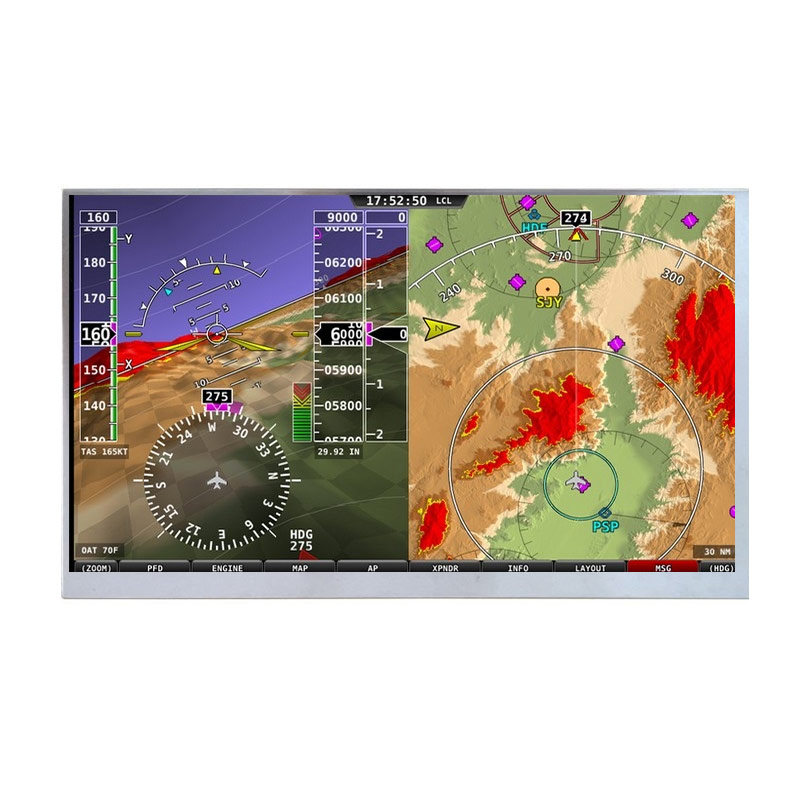

15.6 Inch 1920×1080 LVDS High Brightness Wide Temperature TFT LCD Display P1560FHF2MA00 For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > TIANMA > P1560FHF2MA00

P1560FHF2MA00 is a 15.6 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, With LED Driver, without touch screen. P1560FHF2MA00 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 363.8(W)×215.9(H)×9.97(D) mm, viewing area size of 347.06(W)×196.49(H) mm, with surface treament of Antiglare, net weight of 825 g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1560FHF2MA00 can provides 1000 cd/m² display brightness 1500:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. P1560FHF2MA00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

P1560FHF2MA00

Brand：

TIANMA

Size：

15.6 inch"

Resolution：

1920x1080

Interface：

LVDS (2 ch,8-bit)

Technology：

Transmissive

Brightness：

1000cd/m²

Operating Tem：

-30~80°C

Storage Tem：

-30~85°C
