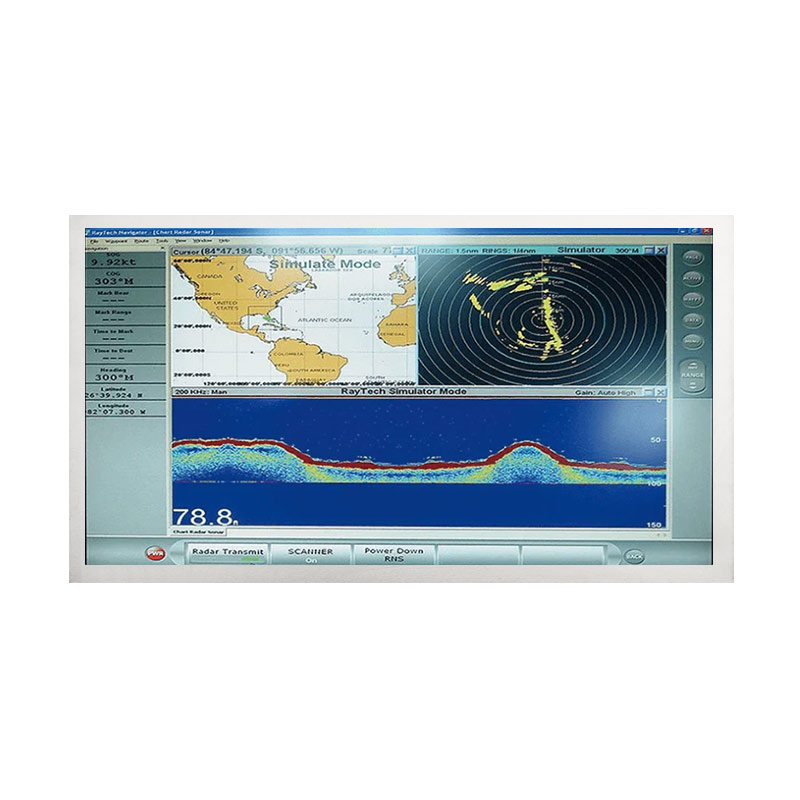

14 Inch 1920×1080 LVDS High Brightness TFT LCD Display P1400FHF1MA00 For Marine Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > TIANMA > P1400FHF1MA00

P1400FHF1MA00 is a 14.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. P1400FHF1MA00 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 309.312(W)×173.988(H) mm, outline size of 315.31(W)×184.49(H)×8.7(D) mm, with surface treament of Antiglare, net weight of 318g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1400FHF1MA00 can provides 800 cd/m² display brightness 1700:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 40K hours, With LED Driver. P1400FHF1MA00 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

P1400FHF1MA00

Brand：

TIANMA

Size：

14 inch"

Resolution：

1920x1080

Interface：

LVDS (2 ch,8-bit)

Technology：

Transmissive

Brightness：

800cd/m²

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
