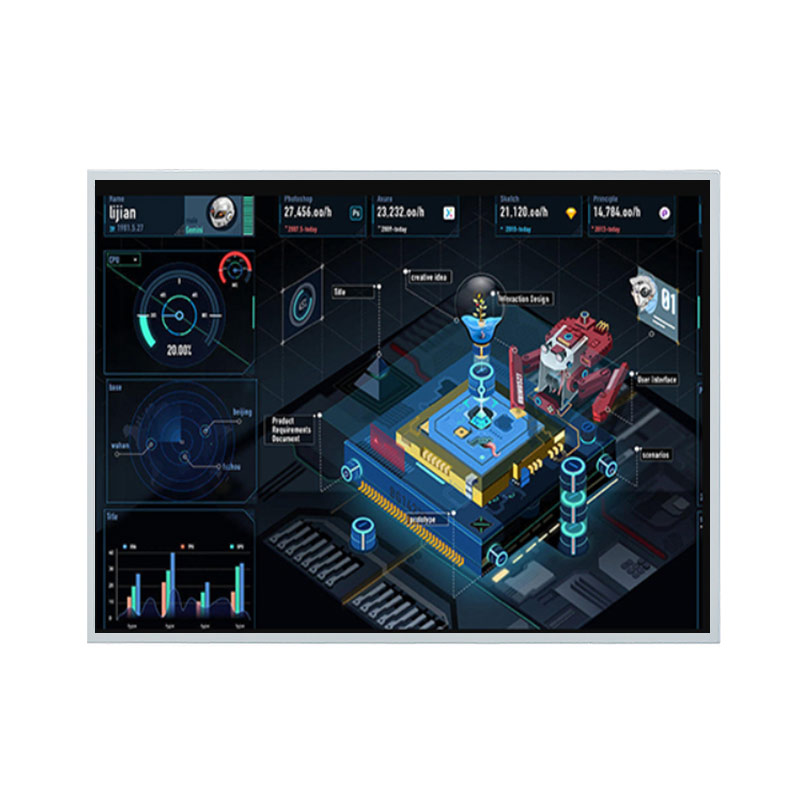

P1210XGF1MA00 12.1 Inch 1024×768 LVDS High Brightness 1300nits Wide Temperature LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > TIANMA > P1210XGF1MA00

P1210XGF1MA00 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 245.76(W)×184.32(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, viewing area size of 249(W)×187.5(H) mm, with surface treament of Antiglare, net weight of 550g (Typ.). As a SFT, Normally Black, Transmissive LCM product, P1210XGF1MA00 can provides 1300 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 7S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, external backlight driver is additionally needed. P1210XGF1MA00 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

P1210XGF1MA00

Brand：

TIANMA

Size：

12.1 inch"

Resolution：

1024×768

Interface：

LVDS (1 ch, 6/8-bit) , 20 pins Connector

Technology：

Transmissive

Brightness：

1300 cd/m² (Typ.)

Operating Tem：

-30 ~ 80 °C

Storage Tem：

-40 ~ 90 °C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
