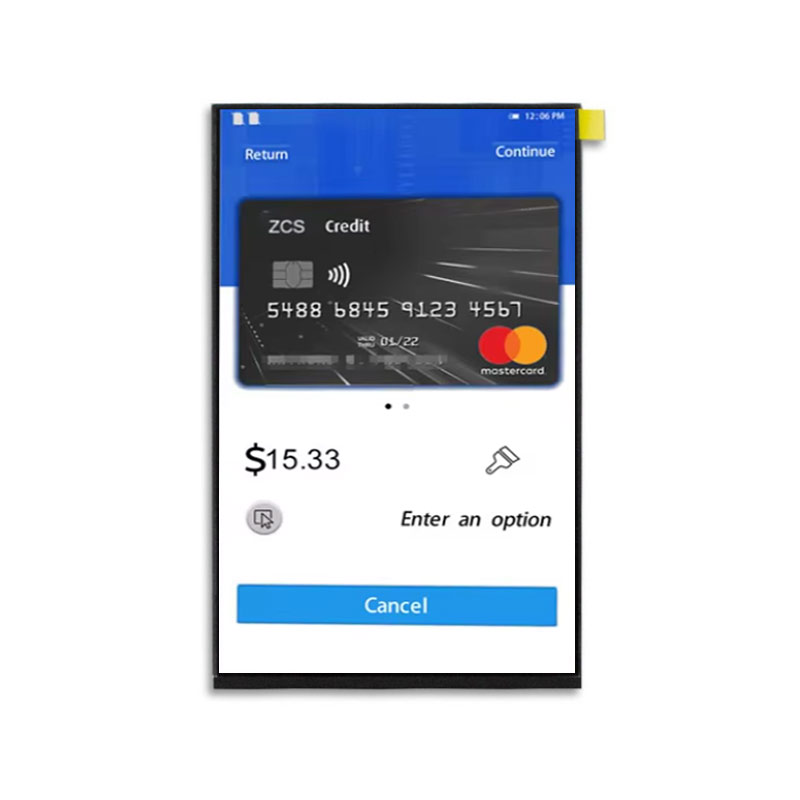

NV103WUM-L61 10.3 Inch TFT LCD Display MIPI 1200×1920 LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > NV103WUM-L61
NV103WUM-L61 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 138.78(W)×222.048(H) mm, outline size of 144.28(W)×231.398(H)×4.2(D) mm, with surface treament of Hard coating, net weight of 120g (Max.). As a ADS, Normally Black, Transmissive LCM product, NV103WUM-L61 can provides 330 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, external backlight driver is additionally needed. NV103WUM-L61 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 1.8/5.9/-5.9V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
NV103WUM-L61
Brand：
BOE
Size：
10.3 inch"
Resolution：
1200x1920
Interface：
MIPI (4 data lanes)
Technology：
Transmissive
Brightness：
330cd/m²
Operating Tem：
-20~60°C
Storage Tem：
-30~70°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
