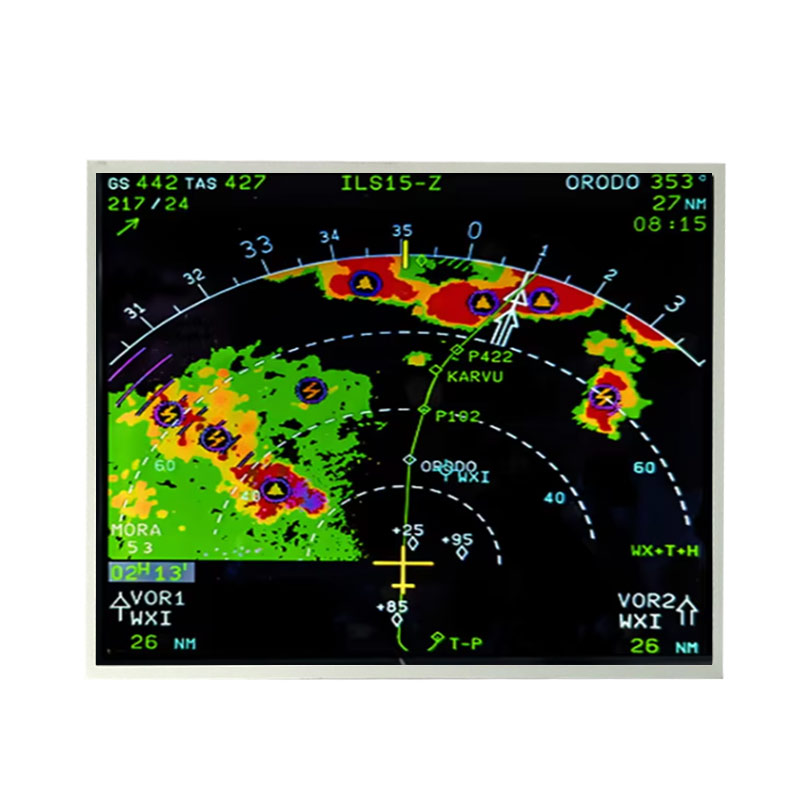

19 Inch 1280×1024 LVDS High Brightness TFT LCD Display NL128102AC29-17 For Marine Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > NL128102AC29-17

NL128102AC29-17 is a 19.0 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, With LED Driver, without touch screen. NL128102AC29-17 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×324(H)×18.5(D) mm, viewing area size of 380.32(W)×305.06(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 2.10/2.31Kgs (Typ./Max.). As a UA-SFT, Normally Black, Transmissive LCM product, NL128102AC29-17 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14/11 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 94K hours, With LED Driver. NL128102AC29-17 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

NL128102AC29-17

Brand：

YOURITECH

Size：

19 inch"

Resolution：

1280x1024

Interface：

LVDS (2 ch,8-bit)

Technology：

Transmissive

Brightness：

800cd/m²

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C
