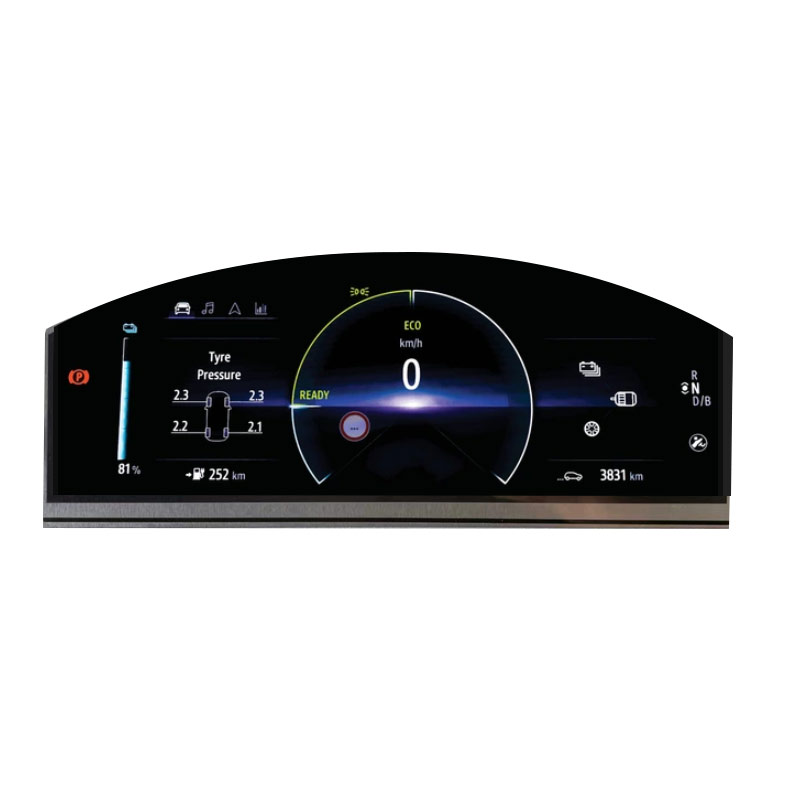

LS123M5LZ01 12.3 Inch 1920×686 LVDS High Brightness 1000nits Wide Temperature LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > SHARP > LS123M5LZ01

LS123M5LZ01 supports display 1920(RGB)×686, whose pixels are arranged in RGB Vertical Stripe. It features active area of 295.2(W)×105.47(H) mm, outline size of 301.3(W)×120.5(H)×15.15(D) mm, with surface treament of Antiglare, Reflection 3.5% (Typ.), net weight of 470g. As a New Mode2, Normally Black, Transmissive LCM product, LS123M5LZ01 can provides 1000 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 77% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver. LS123M5LZ01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 68 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

LS123M5LZ01

Brand：

SHARP

Size：

12.3 inch"

Resolution：

1920x686

Interface：

LVDS (2 ch,8-bit)

Technology：

Transmissive

Brightness：

1000cd/m²

Operating Tem：

-30~85°C

Storage Tem：

-40~85°C
