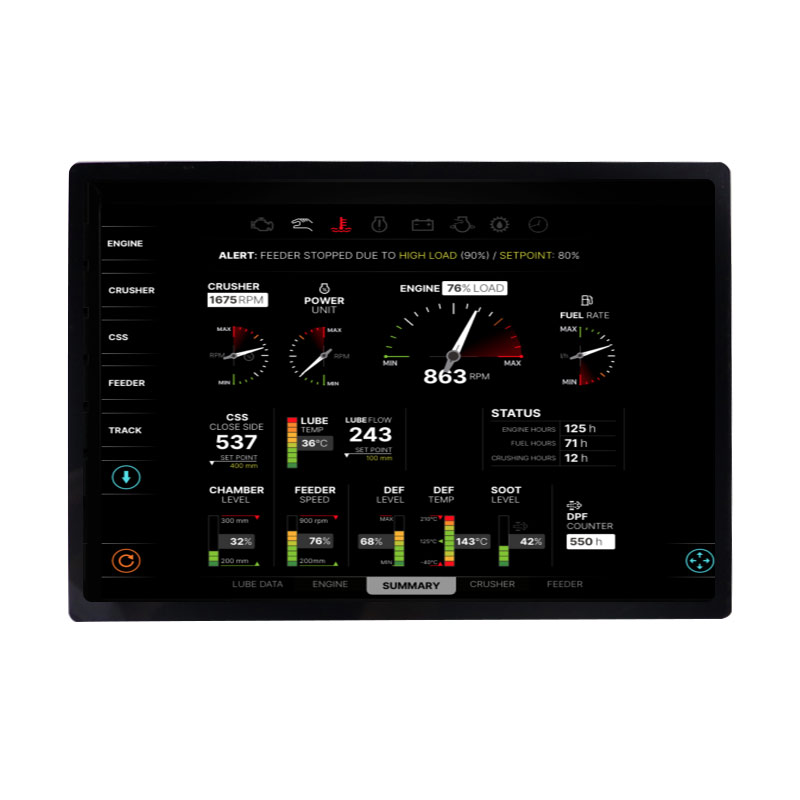

LS120M5LX03 12 Inch 1920×1200 Wide Temperature LCD Display With Capacitive Touch For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > SHARP > LS120M5LX03
LS120M5LX03 is a 12.0 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, touchscreen PCAP. LS120M5LX03 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 257.76(W)×161.1(H) mm, outline size of 280.8(W)×239(H) mm, with surface treament of Anti Fingerprint, Antireflection, net weight of 1.31Kgs (Typ.). As a Normally Black, Transmissive Assembly product, LS120M5LX03 can provides . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Direct light type. LS120M5LX03 utilizes FPD-Link III as it's signal inputting systerm, which connected by 10 pins Connector with power supply voltage of 6.0/24.0V (Typ.)(Min./Max.). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
LS120M5LX03
Brand：
SHARP
Size：
12 inch"
Resolution：
1920x1200
Interface：
FPD-Link III
Technology：
/
Brightness：
/
Operating Tem：
-30~85°C
Storage Tem：
-30~85°C
