LQ156T3LW05 Technical Data

Enabling Customer Innovation to Empower Tomorrow's Technology

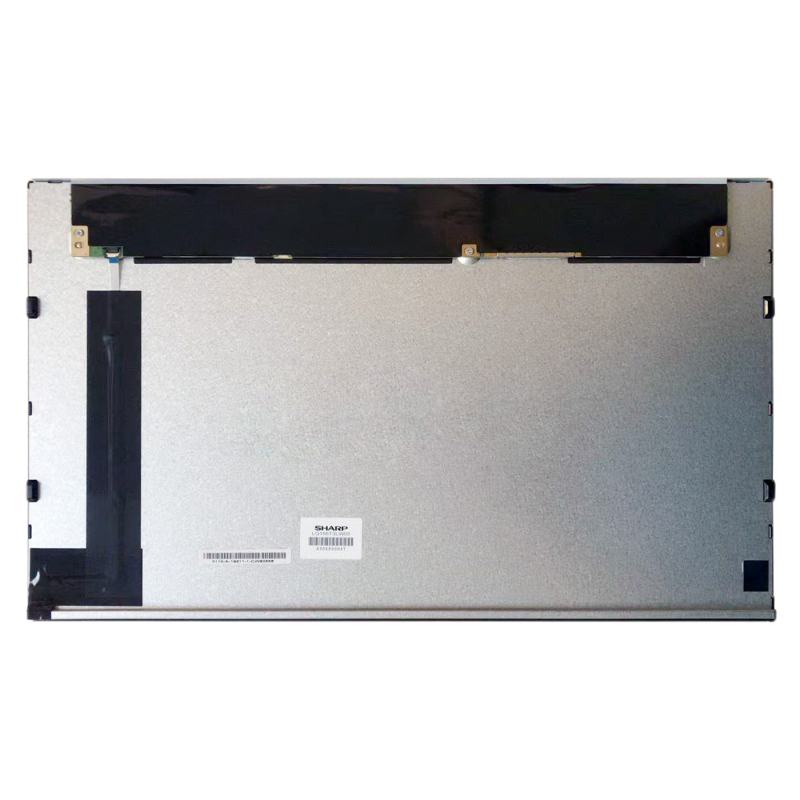

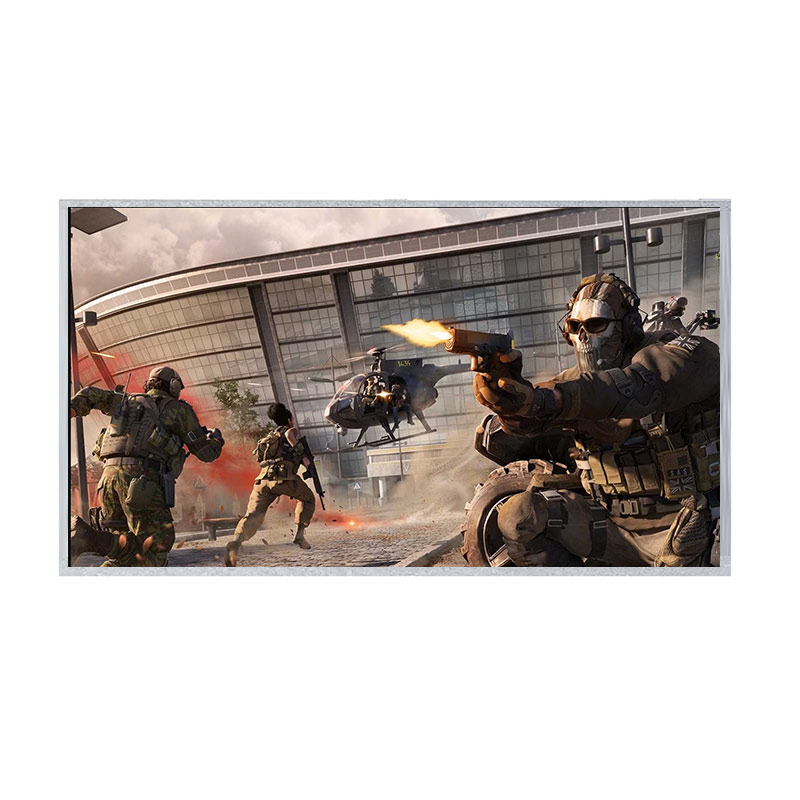

LQ156T3LW05 is a 15.6 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen.LQ156T3LW05 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.232(W)×193.536(H) mm, outline size of 363.8(W)×215.9(H)×11.3(D) mm, viewing area size of 347.54(W)×196.83(H) mm, with surface treament of Hard coating (2H), net weight of 950g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ156T3LW05 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms.
Technical Data:
Part #：
LQ156T3LW05
Brand：
SHARP
Size：
15.6 inch"
Resolution：
1366×768
Interface：
15.6 inch
Technology：
Transmissive
Brightness：
400 cd/m² (Typ.)
Operating Tem：
-20 ~ 70 °C
Storage Tem：
-25 ~ 70 °C
