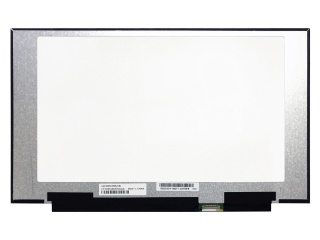

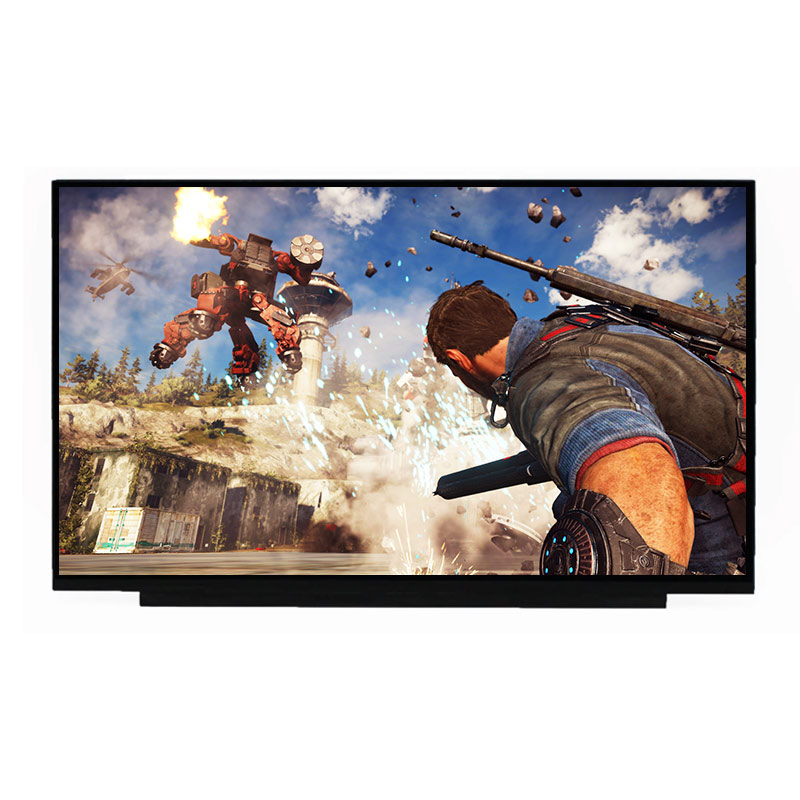

15.6 Inch 1920×1080 eDP TFT LCD Display LQ156M1JW06 For Game Console Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > SHARP > LQ156M1JW06

LQ156M1JW06 is a 15.6 inch diagonal Oxide TFT-LCD display screen product from Sharp, with a built-in WLED backlight, With LED Driver, without touch screen. LQ156M1JW06 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 344.16(W)×193.59(H) mm, outline size of 350.66(W)×215.54(H)×2.6(D) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 310g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a New Mode2, Normally Black, Transmissive LCM product, LQ156M1JW06 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(Tr+Td), 4.4 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. LQ156M1JW06 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 240Hz.

Technical Data:

Part #：

LQ156M1JW06

Brand：

SHARP

Size：

15.6 inch"

Resolution：

1920×1080

Interface：

eDP (4 Lanes) , 40 pins Connector

Technology：

Transmissive

Brightness：

300cd/m²

Operating Tem：

0~50°C

Storage Tem：

-25~60°C
