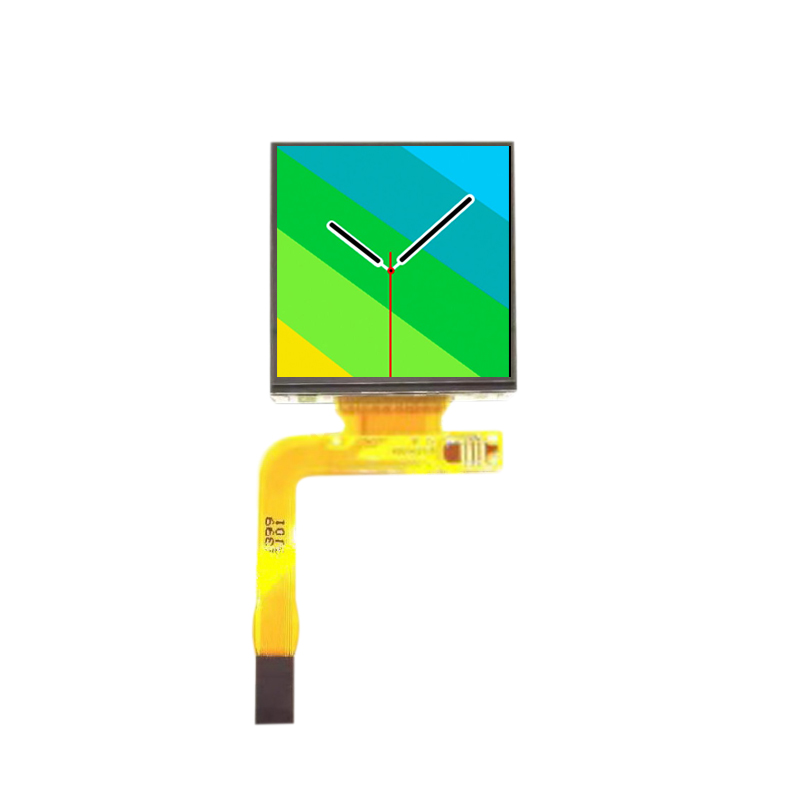

LPM015M135A supports display 200(RGB)×228 with aspect ratio of 8:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 25.2(W)×28.728(H) mm, outline size of 28(W)×33.428(H)×1.01(D) mm, with surface treament of Hard coating (2H), net weight of 1.70g (Typ.). As a ECB, Normally Black, Reflective LCM product, LPM015M135A can provides , 20:1 (Typ.) reflective contrast ratio, 60/65/65/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 3/6 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 2-bit gray scale signal for each dot, thus presenting a palette of 64 colors, also with performance of color gamut 17% (NTSC). This product have no backlight, external backlight driver is additionally needed. LPM015M135A utilizes Parallel Data (1ch, 6-bit) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 3.3/4.5V (Typ.)(VLCD/VDDP). It's typical vertical frame rate (Fv) is 60Hz.
