LM215WFA-SSG2 21.5 Inch TFT LCD Display 1920×1080 LVDS LCD Display With In-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > LG Display > LM215WFA-SSG2

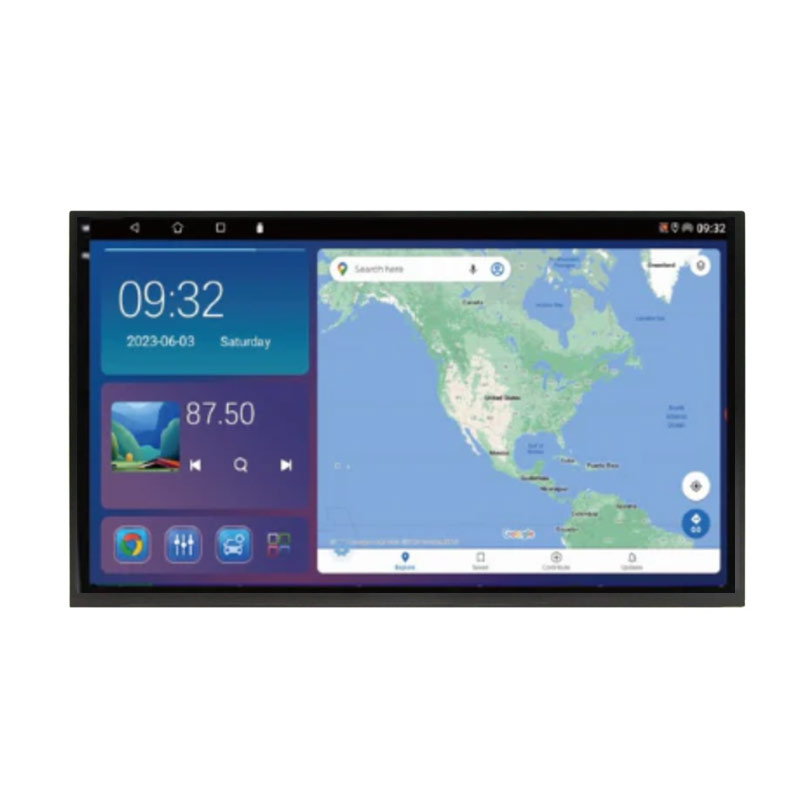

LM215WFA-SSG2 is a 21.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen In-Cell Touch. LM215WFA-SSG2 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 476.064(W)×267.786(H) mm, outline size of 484.62(W)×284.57(H)×12.76(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 1.61/1.69Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM215WFA-SSG2 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 13S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM215WFA-SSG2 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 75Hz.

Technical Data:

Part #：

LM215WFA-SSG2

Brand：

LG Display

Size：

21.5 inch"

Resolution：

1920x1080

Interface：

LVDS

Technology：

Transmissive

Brightness：

250cd/m²

Operating Tem：

0~50°C

Storage Tem：

-20~60°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
