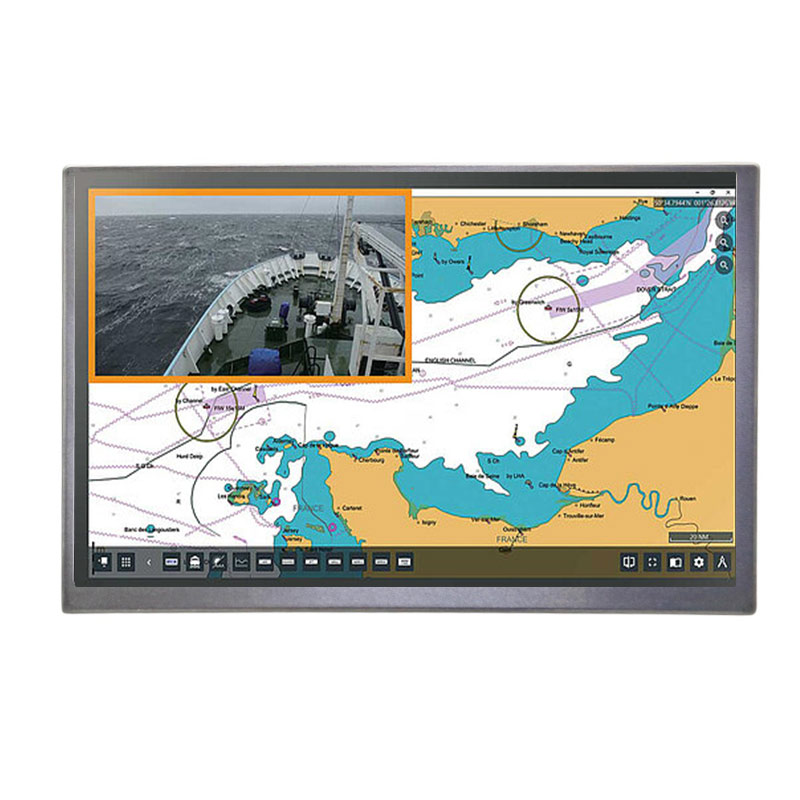

8 Inch 800×480 LVDS High Brightness Wide Temperature TFT LCD Display JJ080IA-15A For Marine Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > INNOLUX > JJ080IA-15A

JJ080IA-15A is a 8.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. JJ080IA-15A supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 174(W)×104.4(H) mm, outline size of 187.4(W)×118(H)×10.2(D) mm, viewing area size of 177.2(W)×107.4(H) mm, with surface treament of Antiglare, net weight of 205g (Typ.). As a AAS, Normally Black, Transmissive LCM product, JJ080IA-15A can provides 920 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. JJ080IA-15A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

JJ080IA-15A

Brand：

INNOLUX

Size：

8.0 inch"

Resolution：

800×480

Interface：

LVDS (1 ch, 8-bit) , 40 pins FPC

Technology：

Transmissive

Brightness：

920 cd/m² (Typ.)

Operating Tem：

-30 ~ 85 °C

Storage Tem：

-40 ~ 95 °C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
