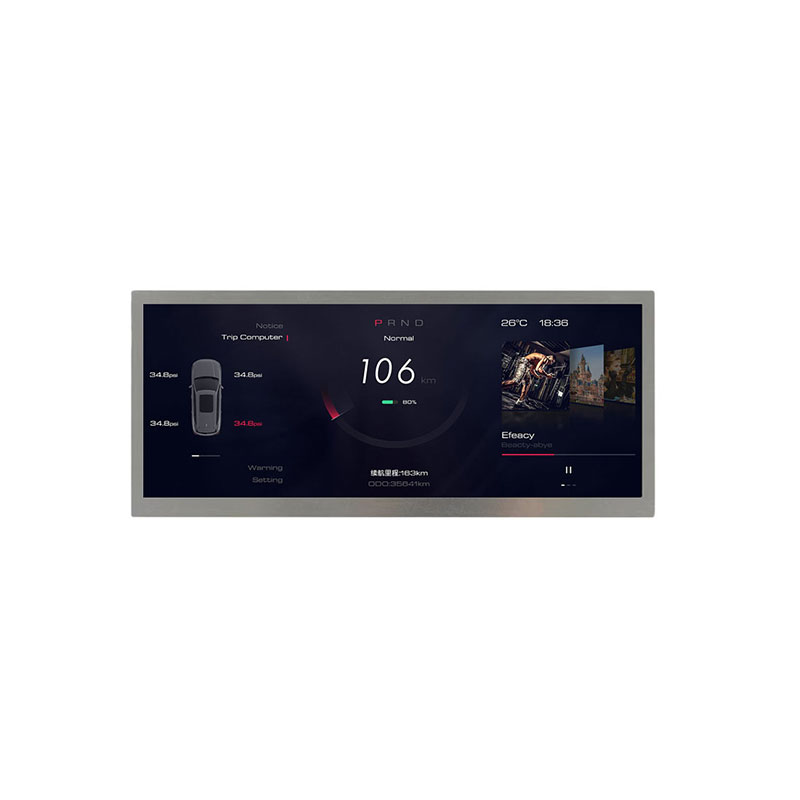

HSD103KPW2-A10 10.3 Inch TFT LCD Display 1920x720 Outdoor High Brightness Wide Temperature LCD Module

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > HannStar > HSD103KPW2-A10

HSD103KPW2-A10 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 243.648(W)×91.368(H) mm, outline size of 259.8(W)×112(H)×15.7(D) mm, viewing area size of 246.05(W)×93.77(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 360g (Typ.). As a HS-IPS Pro, Normally Black, Transmissive LCM product, HSD103KPW2-A10 can provides 850 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted 9S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. HSD103KPW2-A10 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

HSD103KPW2-A10

Brand：

HannStar

Size：

10.3 inch"

Resolution：

1920×720

Interface：

LVDS (2 ch, 8-bit) , 50 pins Connector

Technology：

Transmissive

Brightness：

850 cd/m² (Typ.)

Operating Tem：

-30 ~ 85 °C

Storage Tem：

-30 ~ 85 °C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
