GV069EXB-N80-28P0 6.9 Inch TFT LCD Display MIPI 2400×2560 IPS LCD Display For 3D Printer

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > BOE > GV069EXB-N80-28P0

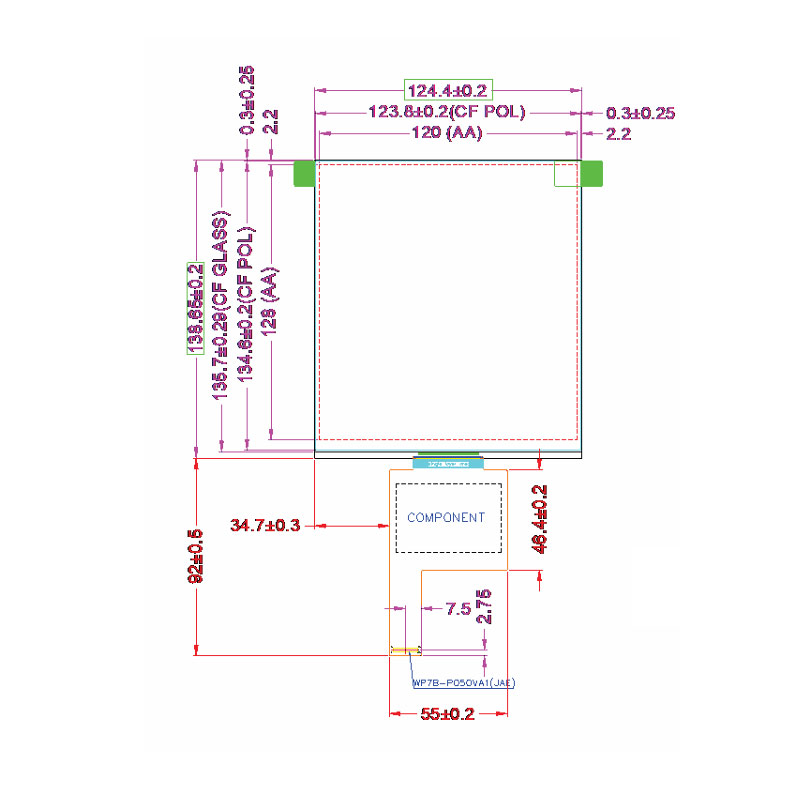

GV069EXB-N80-28P0 supports display 2400×2560 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle, it's pixel density is 508 PPI. As for mechanical detail, it features active area of 120(W)×128(H) mm, outline size of 124.4(W)×138.65(H)×0.95(D) mm, utilizing 0.40+0.40 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, GV069EXB-N80-28P0 can provides 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms., thus presenting a palette of Grayscale colors. This product have no backlight. GV069EXB-N80-28P0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 50 pins FPC. It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
GV069EXB-N80-28P0
Brand：
BOE
Size：
6.9 inch"
Resolution：
2400x2560
Interface：
MIPI (2 ch,4 data lanes)
Technology：
Transmissive
Brightness：
0cd/m²
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
