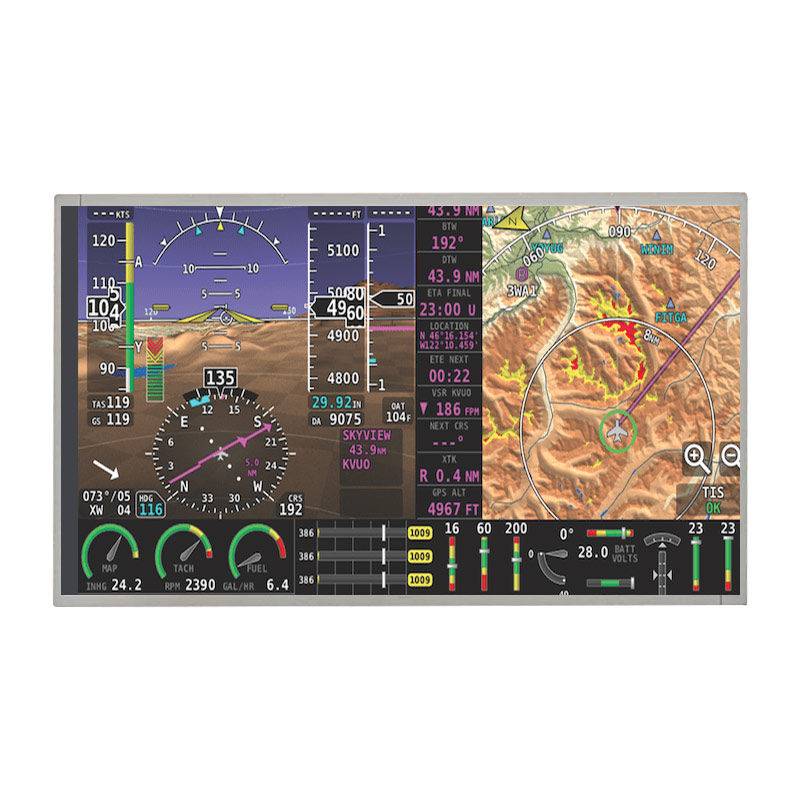

21.5 Inch 1920×1080 LVDS High Brightness Wide Temperature TFT LCD Display G215HCJ-LH1 For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > INNOLUX > G215HCJ-LH1

G215HCJ-LH1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 476.64(W)×268.11(H) mm, outline size of 495.6(W)×292.2(H)×24.55(D) mm, viewing area size of 479.84(W)×271.31(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 1.57±0.78Kgs. As a AHVA, Normally Black, Transmissive LCM product, G215HCJ-LH1 can provides 1400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 13/12 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G215HCJ-LH1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

G215HCJ-LH1

Brand：

INNOLUX

Size：

21.5 inch"

Resolution：

1920×1080

Interface：

LVDS (2 ch, 8-bit) , 30 pins Connector

Technology：

Transmissive

Brightness：

1400 cd/m² (Typ.)

Operating Tem：

-30 ~ 80 °C

Storage Tem：

-30 ~ 80 °C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
