18.5 Inch 1920×1080 LVDS 2000nits High Brightness TFT LCD Display For Marine Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET185FH01-T

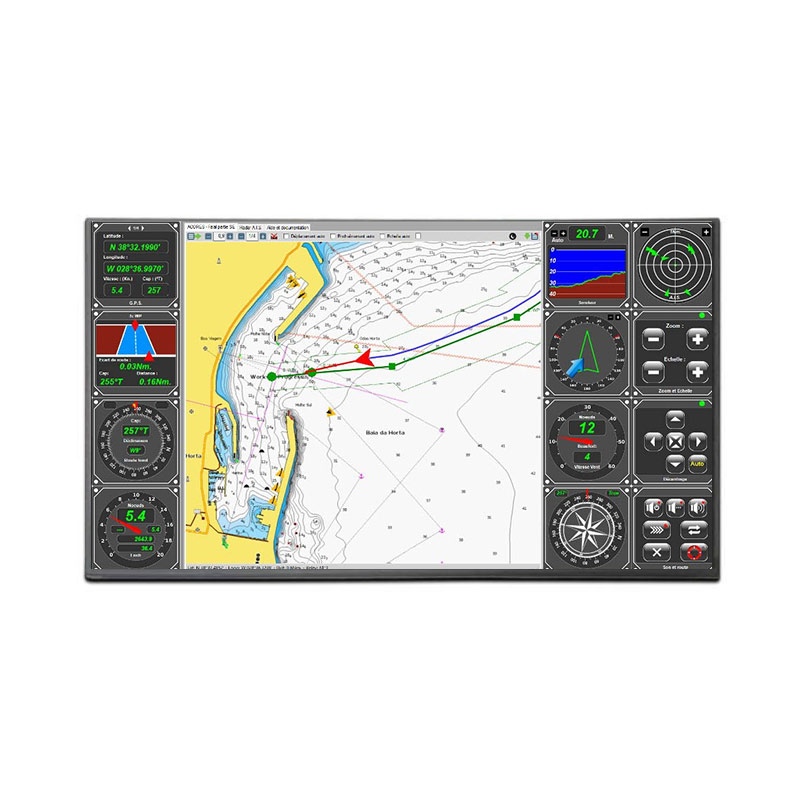

ET185FH01-T is an 18.5-inch diagonal TFT LCD display, transmissive mode, with LVDS interface. ET185FH01-T supports 1920×1080 (FHD) resolution with a 16:9 aspect ratio and wide viewing angles of 80°/80°/80°/80° (L/R/U/D). It features an active area of 408 × 230 mm, outline dimensions of 430 × 254 mm, and provides 2000 cd/m² high-brightness output. The display operates over a wide temperature range of -20~70 °C and can be stored at -30~80 °C. This model does not include touch functionality and is suitable for marine and other high-brightness applications.
Technical Data:
Part #：
ET185FH01-T
Brand：
YOURITECH
Size：
18.5 inch"
Resolution：
1920x1080
Interface：
LVDS
Technology：
Transmissive
Brightness：
2000cd/m²
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
