8 Inch TFT LCD Display LVDS 1920×1200 High Brightness 1000nits Wide Temperature -30~85℃ LCD Display For Drone

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET080WU01-R

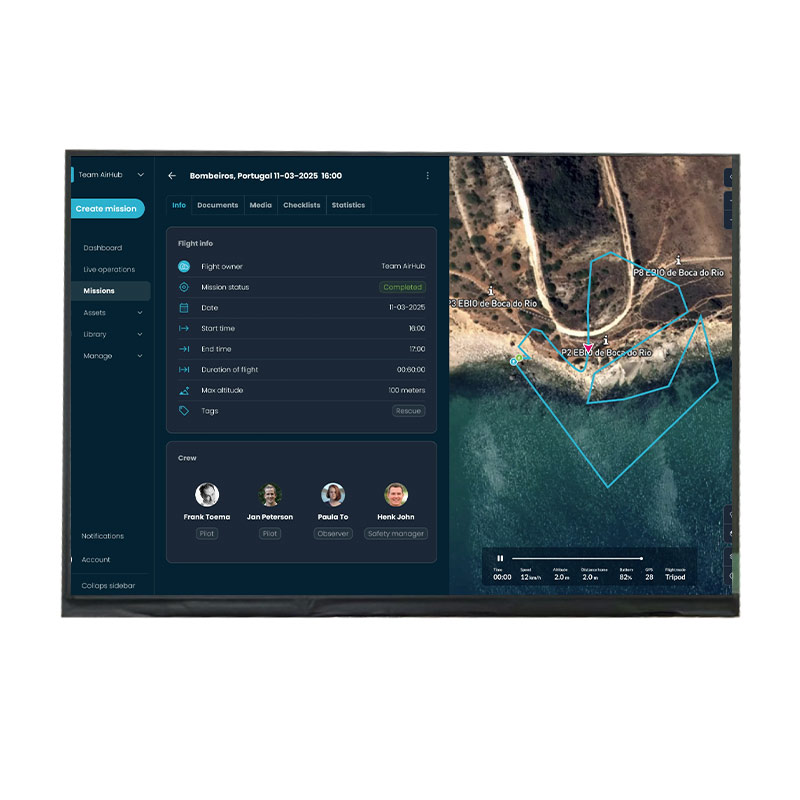

ET080WU01-R is an 8.0-inch diagonal TFT-LCD display module featuring a transmissive display mode. ET080WU01-R supports 1920×1200 (WUXGA) resolution with an aspect ratio of 16:10 (W), delivering sharp and detailed image performance for drone display applications. It features an active area of 172.22(W) × 107.64(H) mm and an outline dimension of 179.96(W) × 119.92(H) mm. ET080WU01-R can provide a typical brightness of 1000 cd/m² and a wide viewing angle of 85/85/85/85 (L/R/U/D), ensuring clear visibility in outdoor and high-ambient-light environments. Equipped with an LVDS interface, it supports an ultra-wide operating and storage temperature range of -30°C to 85°C, making it suitable for demanding and extreme environmental conditions. Designed without a touch panel, ET080WU01-R is an ideal display solution for UAV ground control systems, drone monitoring equipment, and other rugged outdoor industrial applications.

Technical Data:

Part #：

ET080WU01-R

Brand：

YOURITECH

Size：

8 Inch"

Resolution：

1920×1200

Interface：

LVDS

Technology：

Transmissive

Brightness：

1000(Typ.)

Operating Tem：

-30~85°C

Storage Tem：

-30~85°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
