7.84 Inch Stretched Bar Display 400x1280 IPS LVDS 700nits High Brightness TFT LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET078HD02-T

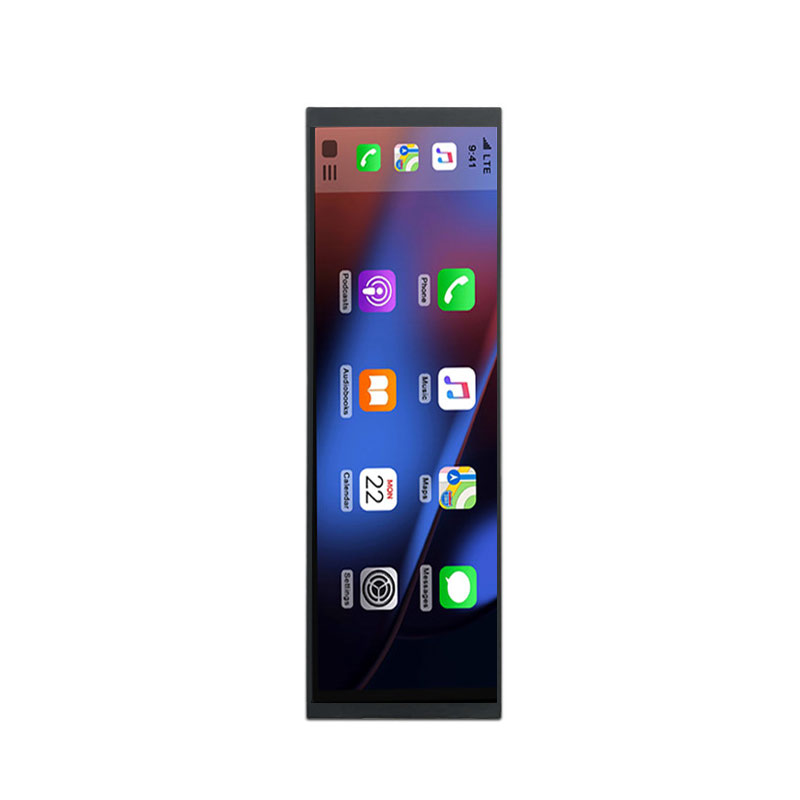

ET078HD02-T is a 7.84-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 400 × 1280 pixels and uses an LVDS interface for reliable high-speed signal transmission. The display offers an active area of 59.4 (W) × 190.08 (H) mm within an outline dimension of 67.14 (W) × 205.12 (H) mm, making it ideal for tall, vertical-oriented applications. With wide viewing angles of 80° in all directions (L/R/U/D), it delivers consistent and stable image quality. The typical brightness reaches 700 cd/m², ensuring excellent readability even in bright environments. ET078HD02-T is designed for dependable operation across a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it suitable for high-brightness stretched bar display applications in industrial systems, transportation equipment, and embedded devices.

Technical Data:

Part #：

ET078HD02-T

Brand：

YOURITECH

Size：

7.84 inch"

Resolution：

400x1280

Interface：

MIPI

Technology：

Display mode:

Brightness：

700(Typ.)

Operating Tem：

-20~70°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
