7 Inch High Brightness 1100nits IPS 800x1280 MIPI TFT LCD Display With Capacitive Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET070WX10-TT

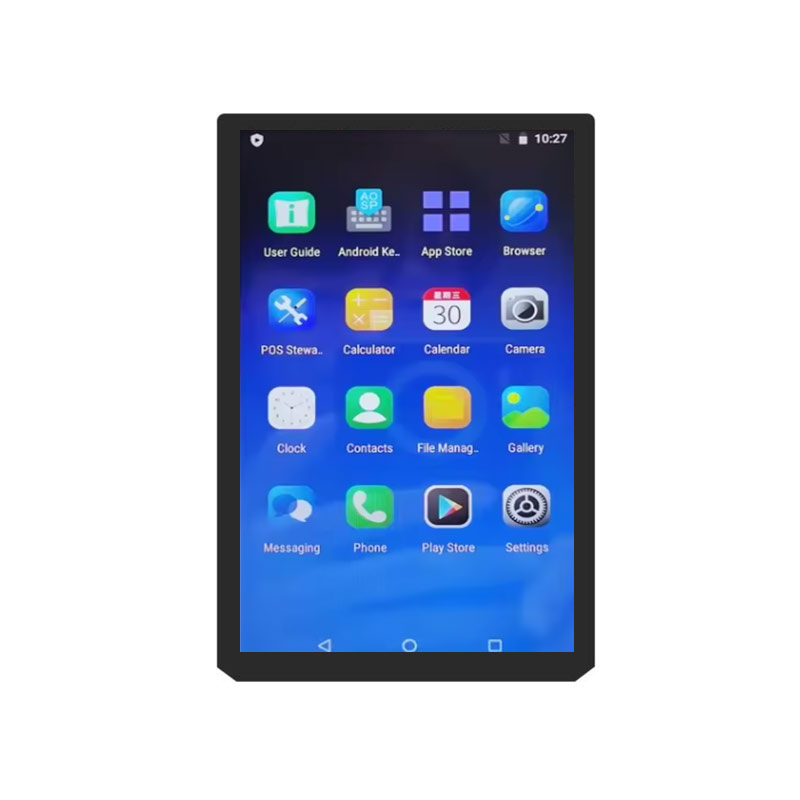

ET070WX10-TT is a 7-inch high-brightness IPS TFT LCD display featuring an 800×1280 resolution with a MIPI interface. It uses a transmissive display mode, offers a typical brightness of 1100 cd/m², and provides 80° viewing angles in all directions. The display has an active area of 94.2×150.72 mm within an outline of 108.1×164.2 mm, operates from –20 °C to 70 °C, and supports capacitive touch functionality.
Technical Data:
Part #：
ET070WX10-TT
Brand：
YOURITECH
Size：
7 inch"
Resolution：
800x1280
Interface：
MIPI
Technology：
Transmissive
Brightness：
1100(Typ.)
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
