7.8 Inch 400×1280 TTL High Brightness 700nits LCD Display For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET070HD03-T

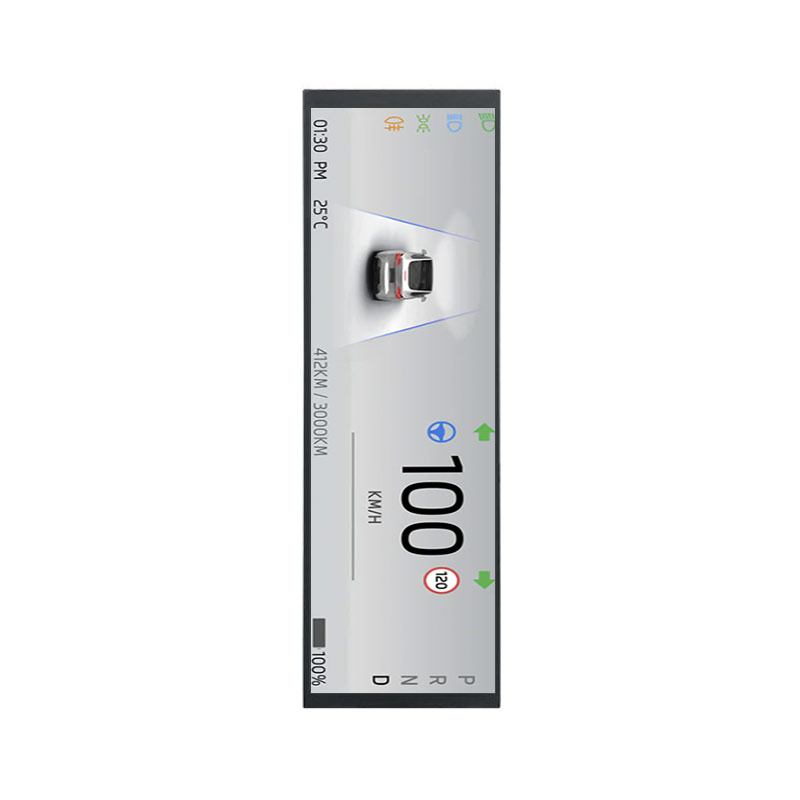

ET070HD03-T is a 7.8-inch diagonal TFT-LCD display product with a transmissive display mode. ET070HD03-T supports a resolution of 400×1280, delivering an ultra-tall vertical display format, and utilizes a TTL interface for signal transmission. It features an active area of 59.4(W)×190.8(H) mm and an outline dimension of 67.8(W)×205.78(H) mm. The display provides a brightness of 700 cd/m², suitable for automotive applications and bright ambient environments, and adopts IPS technology for wide viewing angles. ET070HD03-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
Technical Data:
Part #：
ET070HD03-T
Brand：
YOURITECH
Size：
7.8 inch"
Resolution：
400x1280
Interface：
TTL
Technology：
Transmissive
Brightness：
700nits
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
