6.2 Inch 1024×600 TTL High Brightness Wide Temperature Display For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET062WS02-T

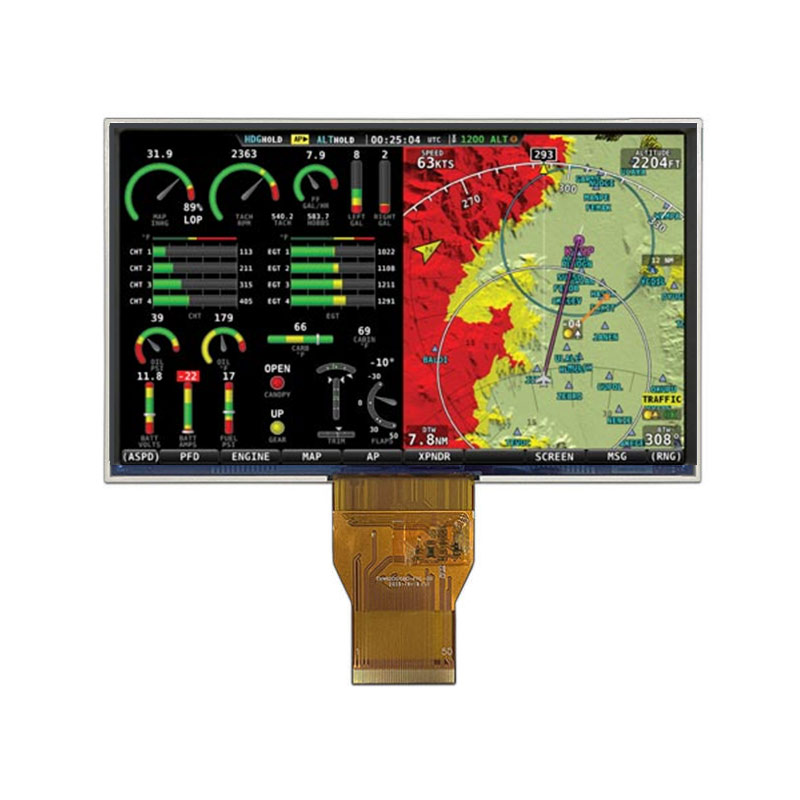

ET062WS02-T is a 6.2 inch diagonal TFT LCD display product, featuring a transmissive display mode. It supports a resolution of 1024×600 with a standard aspect ratio, delivering clear and stable visual performance. This model adopts a TTL interface for reliable signal transmission. It features an active area of 137.47(W)×77.23(H) mm and an outline dimension of 144.27(W)×88.1(H) mm. With a wide viewing angle of 80/80/80/80 (L/R/U/D), it ensures consistent image quality from multiple directions. The display provides a brightness of 750 cd/m², making it suitable for high-brightness applications such as aerospace displays. Additionally, it supports a wide operating temperature range of -30°C to 80°C and storage temperature range of -30°C to 85°C. This model does not include a touch panel.
Technical Data:
Part #：
ET062WS02-T
Brand：
YOURITECH
Size：
6.2 inch"
Resolution：
1024x600
Interface：
TTL
Technology：
Transmissive
Brightness：
750nits
Operating Tem：
-30~80°C
Storage Tem：
-30~85°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
