3.4 Inch 480×640 MIPI RGB Transflective LCD Display For Cycling Computer Bike Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > YOURITECH > ET034VG01-H

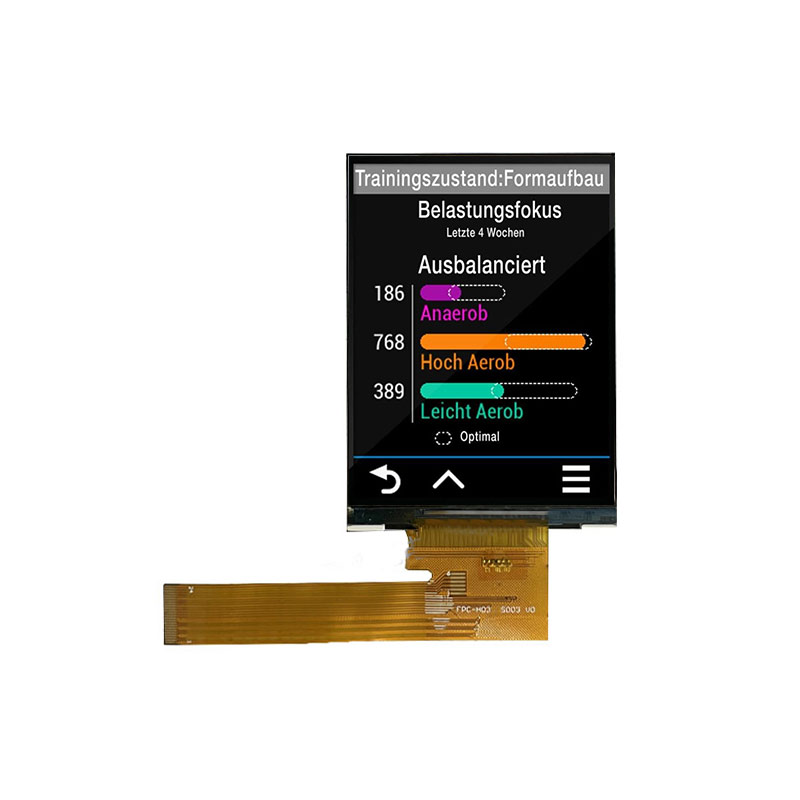

ET034VG01-H is a 3.4-inch diagonal TFT-LCD display module featuring a transflective display mode. It supports a resolution of 480×640 with a 3:4 aspect ratio (W:H) and adopts MIPI/RGB interfaces for flexible integration. The display offers an active area of 51.84 (W) × 69.12 (H) mm and an outline dimension of 55.44 (W) × 78.89 (H) mm. With a brightness of 200 cd/m², it ensures readable performance under both ambient and low-light conditions, making it suitable for cycling computer and bike display applications. It features IPS full viewing angle performance and operates within a temperature range of -20°C to 60°C (storage: -20°C to 70°C). This module does not include a touch panel.

Technical Data:

Part #：

ET034VG01-H

Brand：

YOURITECH

Size：

3.4 inch"

Resolution：

480x640

Interface：

MIPI/RGB

Technology：

IPS

Brightness：

200nits

Operating Tem：

-20~60°C

Storage Tem：

-20~70°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
