2.8 Inch Circular Display 480x480 RGB 18 BIT TFT LCD Display With Touch For Automotive

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET028WF01-TT

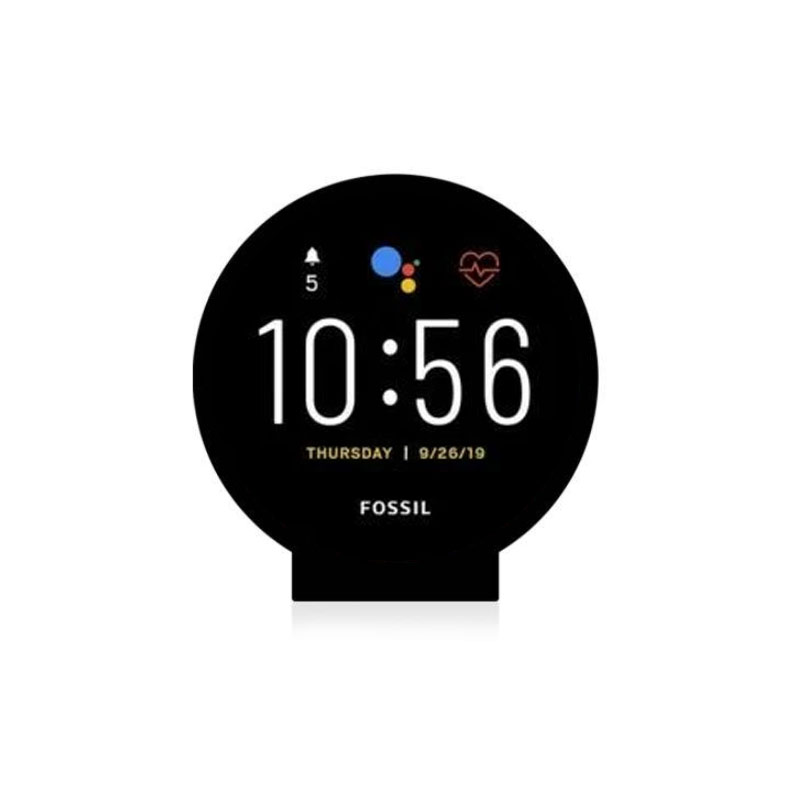

ET028WF01-TT is a 2.8-inch diagonal circular IPS TFT LCD display module designed for compact and versatile applications. It supports a 480×480 resolution with a square circular layout, whose pixels deliver clear and stable image performance. The display adopts an 18-bit RGB interface for reliable color transmission and stable signal performance. It features an active area of 70.128(W) × 70.128(H) mm and an outline size of 73.03(W) × 76.48(H) × 2.3(D) mm. ET028WF01-TT can provide a brightness of 400 cd/m², ensuring suitable visibility for typical indoor use. This model does not include a touch panel.
Technical Data:
Part #：
ET028WF01-TT
Brand：
YOURITECH
Size：
2.8 inch"
Resolution：
480x480
Interface：
RGB 18 BIT
Technology：
IPS
Brightness：
400cd/m²
Operating Tem：
/
Storage Tem：
/
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
