2.1 Inch Circular Display IPS 480x480 ST7701S MIPI 2 LANE TFT LCD Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET021WV02-T

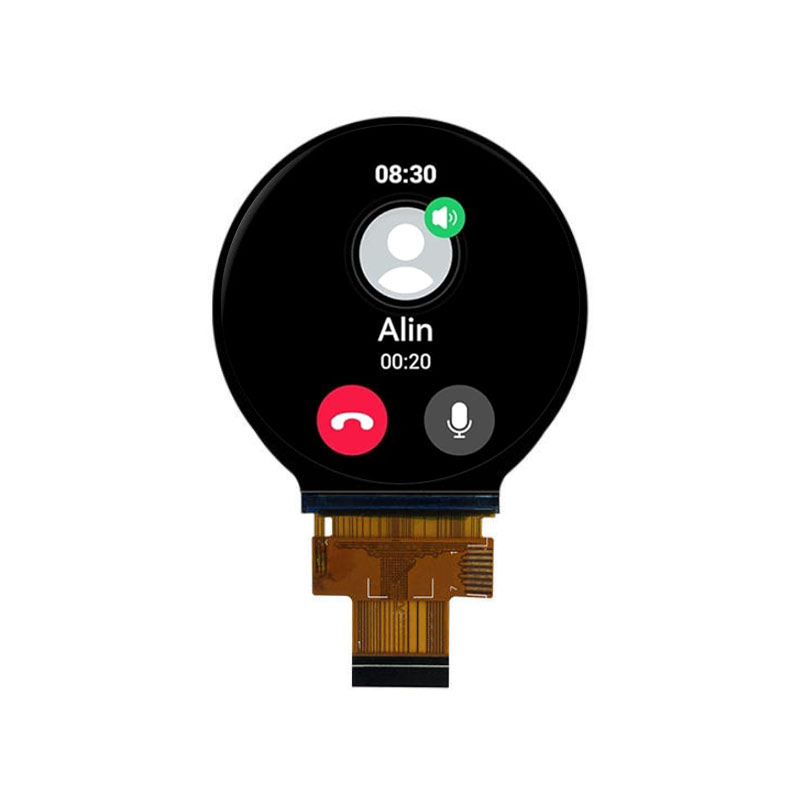

ET021WV02-T is a 2.1-inch diagonal circular IPS TFT LCD display module designed for compact and space-constrained applications. It supports a 480×480 resolution with a square circular layout, whose pixels deliver clear and stable image performance. The display adopts a MIPI 2-lane interface for efficient signal transmission. It features an active area of 53.28(W) × 53.28(H) mm and an outline size of 56.18(W) × 59.71(H) × 2.2(D) mm. ET021WV02-T can provide a brightness of 450 cd/m², ensuring readable performance under typical indoor conditions. This model does not include a touch panel.
Technical Data:
Part #：
ET021WV02-T
Brand：
YOURITECH
Size：
2.1 inch"
Resolution：
480x480
Interface：
MIPI 2 LANE
Technology：
IPS
Brightness：
450cd/m²
Operating Tem：
/
Storage Tem：
/
