2 Inch High Brightness 800nits IPS 410x502 MIPI AMOLED Display With On-Cell Touch

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET020AM03-HT

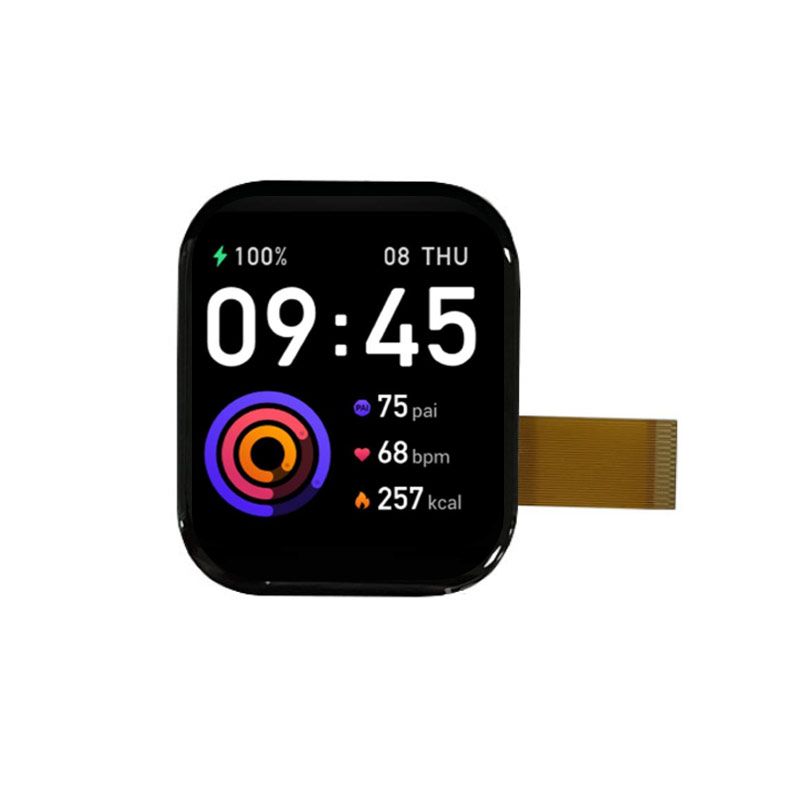

ET020AM03-HT is a 2-inch diagonal high-brightness IPS AMOLED display with on-cell touch functionality. It features a 410×502 resolution with a MIPI interface and a transmissive AMOLED display mode. The active area measures 31.37(W)×38.4(H) mm, with an outline size of 33.07×41.05 mm. ET020AM03-HT delivers a typical brightness of 800 cd/m², viewing angles of 80°/80°/80°/80° (L/R/U/D), and operates over a temperature range of –20 °C to 70 °C (storage –30 °C to 80 °C).
Technical Data:
Part #：
ET020AM03-HT
Brand：
YOURITECH
Size：
2 inch"
Resolution：
410x502
Interface：
MIPI
Technology：
AMOLED
Brightness：
800(Typ.)
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
