1.54 Inch 240×240 CPU High Brightness 1000nits LCD Display For Cycling Computer Bike Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET015QV02-T

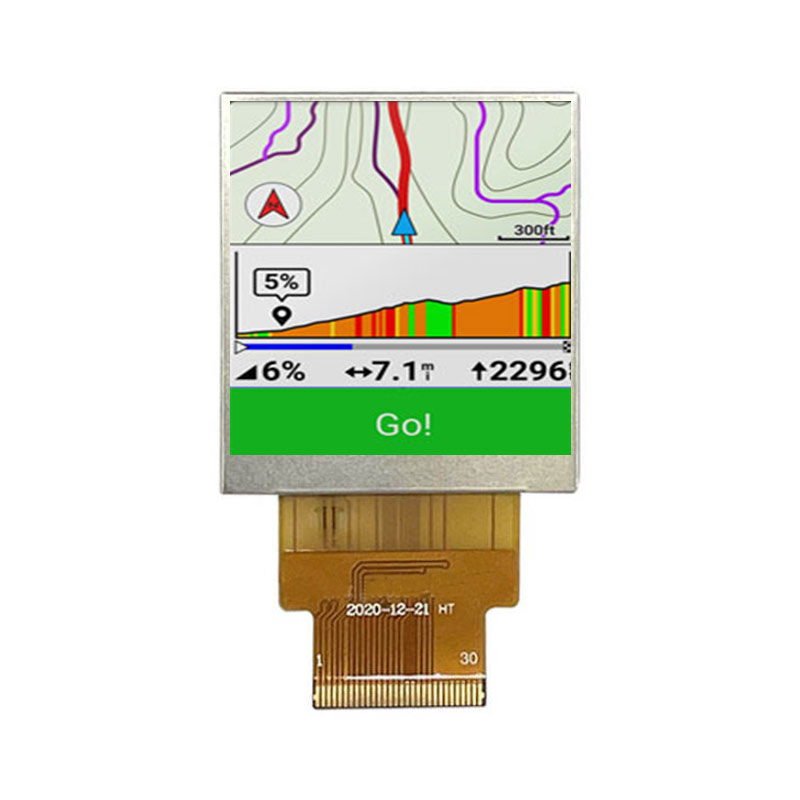

ET015QV02-T is a 1.54 inch diagonal TFT LCD display module, featuring a transmissive display mode. It supports a resolution of 240×240 with a 1:1 aspect ratio (W:H), delivering clear and balanced visual performance. The panel adopts a CPU interface for stable data transmission. It offers an active area of 27.72(W) × 27.72(H) mm and an outline dimension of 31.92(W) × 35.11(H) mm. With a high brightness of up to 1000 cd/m², it ensures excellent readability even under strong ambient light, making it suitable for outdoor applications such as cycling computers and bike displays. The display provides wide viewing angles of 80 degrees in all directions (L/R/U/D), ensuring consistent image quality. It operates reliably within a temperature range of -20°C to 70°C and can be stored between -30°C and 80°C. This model does not include a touch panel.
Technical Data:
Part #：
ET015QV02-T
Brand：
YOURITECH
Size：
1.54 inch"
Resolution：
240x240
Interface：
CPU
Technology：
Transmissive
Brightness：
1000nits
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
