1.45 Inch TFT LCD Display CPU 172×320 LCD Display With Touch For Healthcare & Medical Display Solution

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > YOURITECH > ET015QV01-R

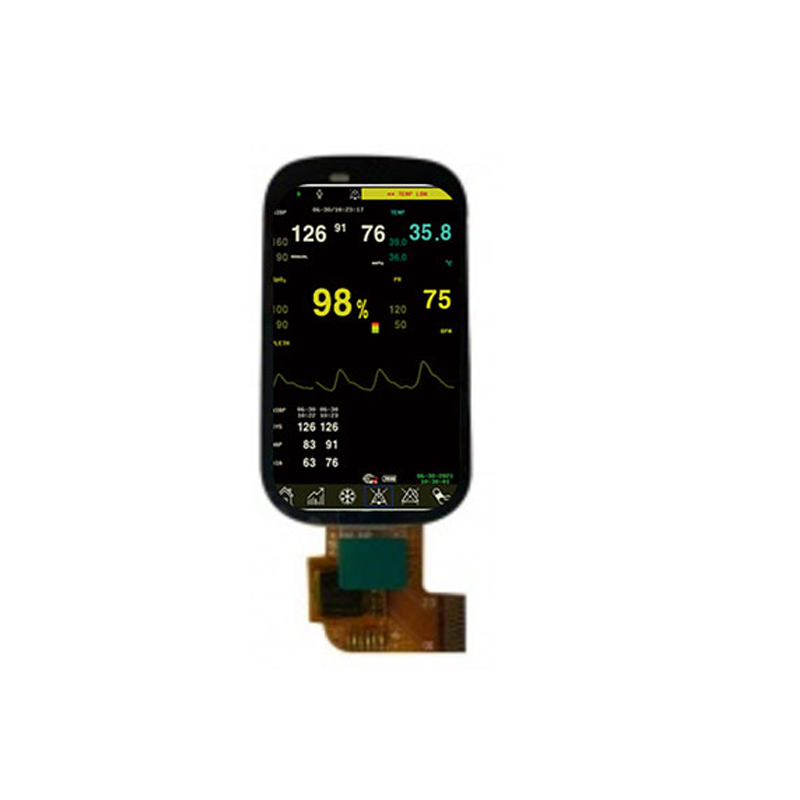

ET015QV01-R is a 1.45 inch diagonal TFT LCD display designed for healthcare and medical display solutions. ET015QV01-R supports a resolution of 172×320 pixels with a CPU interface and a transmissive display mode. It features an active area of 17.39(W)×32.35(H) mm and an outline dimension of 26.1(W)×47.1(H) mm. The display provides a brightness of 470 cd/m² (Typ.) and a wide viewing angle of L/R/U/D 85°/85°/85°/85°. ET015QV01-R supports an operating temperature range of -20~70°C and a storage temperature range of -30~80°C. The display integrates a touch panel, making it suitable for compact healthcare equipment, medical instruments, handheld medical devices, portable medical equipment, and other interactive embedded medical display applications.
Technical Data:
Part #：
ET015QV01-R
Brand：
YOURITECH
Size：
1.45 Inch"
Resolution：
172×320
Interface：
CPU
Technology：
Transmissive
Brightness：
470(Typ.)
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
