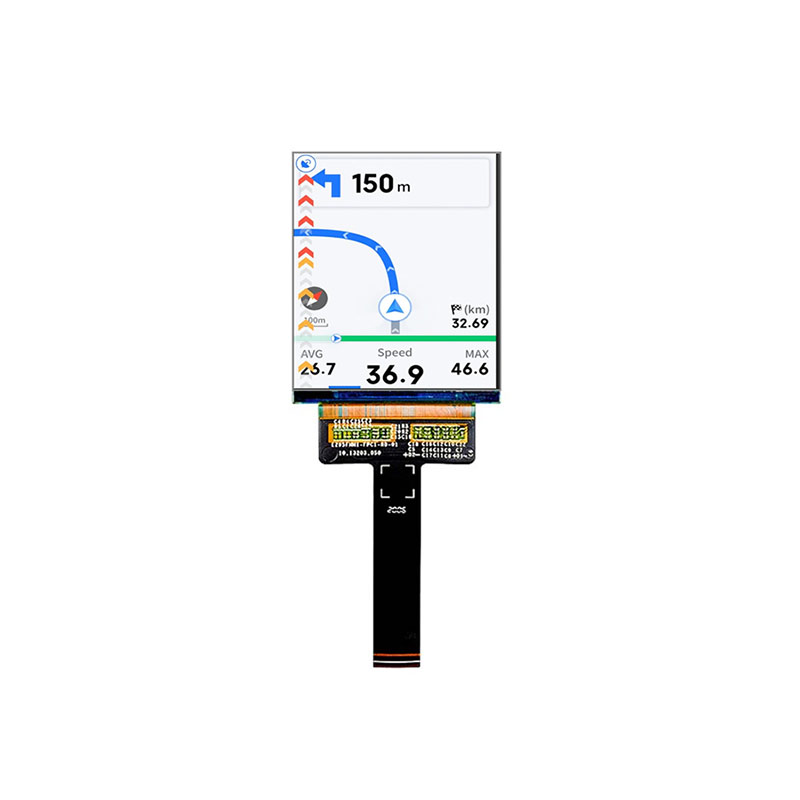

3 Inch OLCD Display 1080×1200 MIPI Wide Temperature -40~85°C AMOLED Display

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > OTHERS > E295FMM1
E295FMM1 supports display 1080(RGB)×1200 with aspect ratio of 8:9 (W:H), whose pixels are arranged in Sub-Pixel Rendering, it's pixel density is 446 PPI. As for mechanical detail, it features active area of 50.11(W)×55.68(H) mm, outline size of 52.91(W)×62.58(H)×0.75(D) mm, net weight of 10±1g. E295FMM1 can provides 300 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥200) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 105% (NTSC). This product emiting itself . E295FMM1 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 1.8/3.3/4.6/-2.5/6.4V (Typ.)(VDDI/VCI/ELVDD/ELVSS/VSP). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
E295FMM1
Brand：
OTHERS
Size：
3 Inch"
Resolution：
1080×1200
Interface：
MIPI (4 data lanes)
Technology：
/
Brightness：
300 cd/m²
Operating Tem：
/
Storage Tem：
/
Contact Us
Name
Email
Telephone
Touch screen customize:
Cover Glass customize:
Demo Kits:
Message
Integrated Display solutions
Touch screen, standard ready-made and customization
Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .
Driver board/adapter board, standard ready-made and design customization
DEMO board, HDMI board, other customized board, etc
Embbed Integrated Solution
UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
