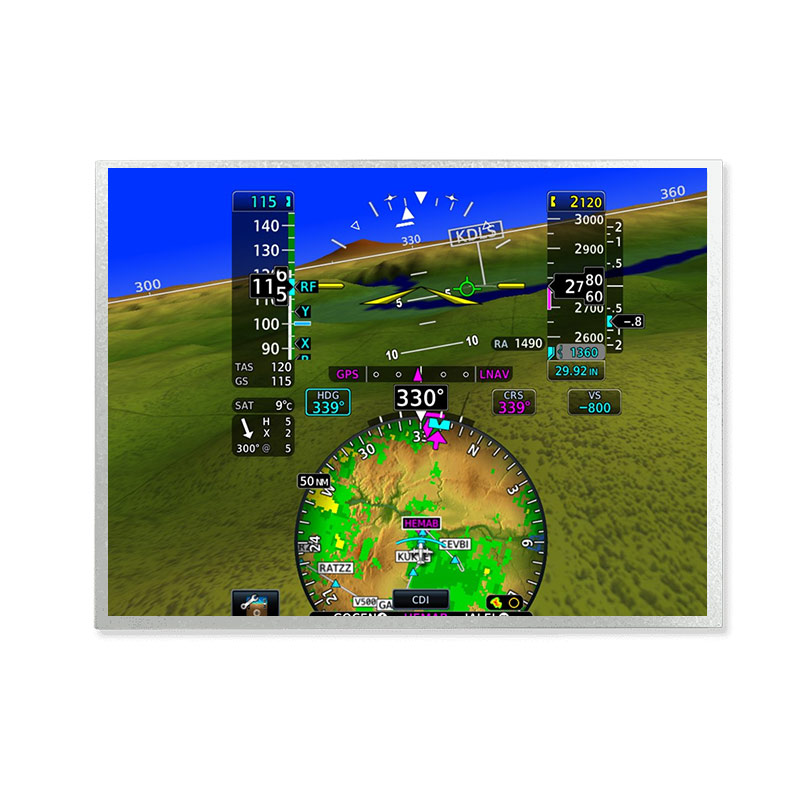

15 Inch 1024×768 LVDS High Brightness Wide Temperature TFT LCD Display DV150X0M-N17 For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > BOE > DV150X0M-N17

DV150X0M-N17 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12.9(D) mm, viewing area size of 306.5(W)×230.1(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 800g. As a HADS, Normally Black, Transmissive LCM product, DV150X0M-N17 can provides 1500 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 12S4P WLED as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, With LED Driver. DV150X0M-N17 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

DV150X0M-N17

Brand：

BOE

Size：

15 inch"

Resolution：

1024x768

Interface：

LVDS (1 ch,8-bit)

Technology：

Transmissive

Brightness：

1500 cd/m² (Typ.)

Operating Tem：

-30~80°C

Storage Tem：

-30~80°C

Name

Telephone

Touch screen customize: YesNo

Cover Glass customize: YesNo

Demo Kits: YesNo

Message

Integrated Display solutions

Touch screen, standard ready-made and customization

Supportrting capacitive touch screen (I2C interface, SPI interface, USB interface, UART interface)/ resistive touch screen / touch structure and function customization / optical bonding manufacturing.
Specific features:
High cost effective, automotive grade, industrial grade, medical grade solutions.
Durable and sturdy design for extreme environments.
Supports glove touch, multi touch, and stylus touch.
Featuring waterproofing, salt water resistance, low reflectivity, and 3D gesture touch control .

Driver board/adapter board, standard ready-made and design customization

DEMO board, HDMI board, other customized board, etc

Embbed Integrated Solution

UART display solution, HMI display solution, WINDOW display solution, Android display solution, Raspberry Pi solution, portable secondary screen solution, etc.
