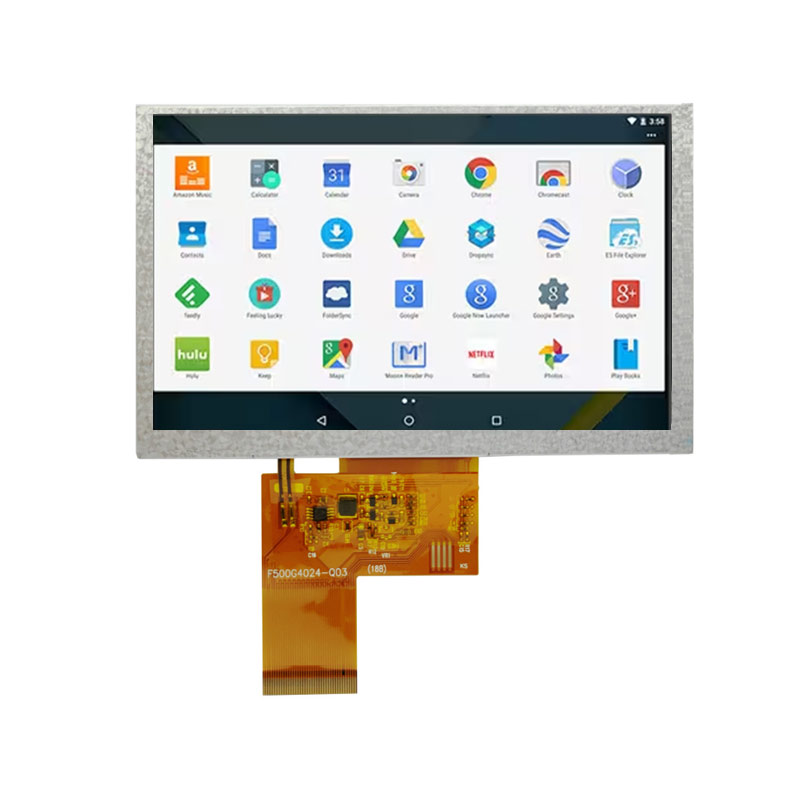

COM50H5N23UTC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 109.2(W)×65.52(H) mm, with surface treament of Hard coating (2H). As a VA, Normally Black, Transflective LCM product, COM50H5N23UTC can provides 500 cd/m² display brightness 700:1 transimissive contrast ratio, 2.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM50H5N23UTC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

COM50H5N23UTC Key Features

• 5.0-inch WVGA (800×480) TFT LCD
• Sunlight-readable transflective technology
• LVDS high-speed interface
• Integrated PCAP capacitive touch panel
• Wide viewing angle VA display
• 500 cd/m² brightness
• 700:1 contrast ratio
• Long-life LED backlight (70,000 hours)
• Low power consumption design
• Industrial-grade reliability
