COM43H4P44ULC 4.3 Inch Transflective Display Parallel RGB 480x272 Sunlight Readable LCD Display For Handheld PDA

Enabling Customer Innovation to Empower Tomorrow's Technology
Home > Technologies > ORTUSTECH > COM43H4P44ULC

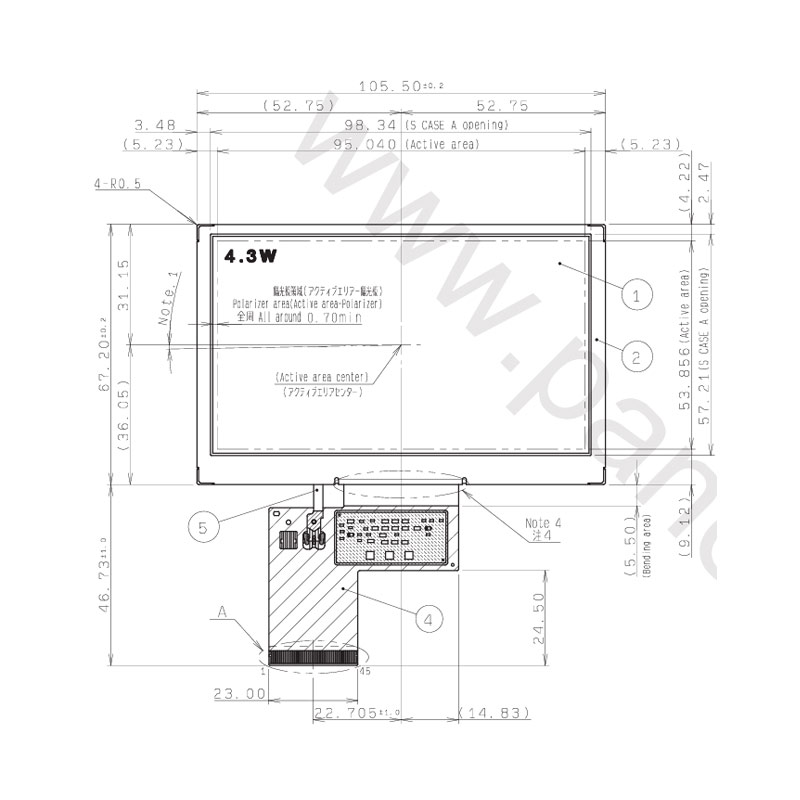

COM43H4P44ULC supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. It features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.1(D) mm, viewing area size of 98.34(W)×57.21(H) mm, net weight of TBD. As a VA, Normally Black, Transflective LCM product, COM43H4P44ULC can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM43H4P44ULC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Technical Data:
Part #：
COM43H4P44ULC
Brand：
ORTUSTECH
Size：
4.3 Inch"
Resolution：
480x272
Interface：
Parallel RGB
Technology：
Transmissive
Brightness：
450cd/m²
Operating Tem：
-20~70°C
Storage Tem：
-30~80°C
