4.3 Inch 480×272 Parallel RGB High Brightness 1150nits Wide Temperature Display COG-VLSZT114-01 For Aerospace Display

Enabling Customer Innovation to Empower Tomorrow's Technology

Home > Technologies > BOE > COG-VLSZT114-01

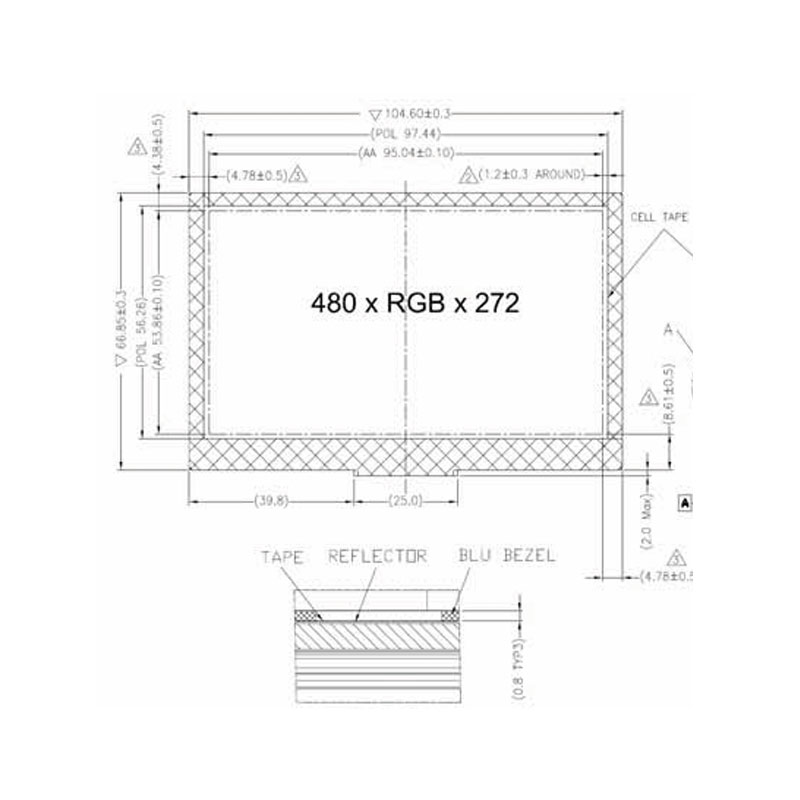

COG-VLSZT114-01 is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. COG-VLSZT114-01 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 95.04(W)×53.86(H) mm, outline size of 104.6(W)×68.85(H)×19.25(D) mm, viewing area size of 97.44(W)×56.25(H) mm, net weight of TBD. As a ADS, Normally Black, Transmissive LCM product, COG-VLSZT114-01 can provides 1150 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 18/16 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 63% (NTSC). This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. COG-VLSZT114-01 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Technical Data:

Part #：

COG-VLSZT114-01

Brand：

BOE

Size：

4.3 inch"

Resolution：

480x272

Interface：

Parallel RGB(1 ch,8-bit)+SPI

Technology：

Transmissive

Brightness：

1150cd/m²

Operating Tem：

-40~85°C

Storage Tem：

-40~85°C
