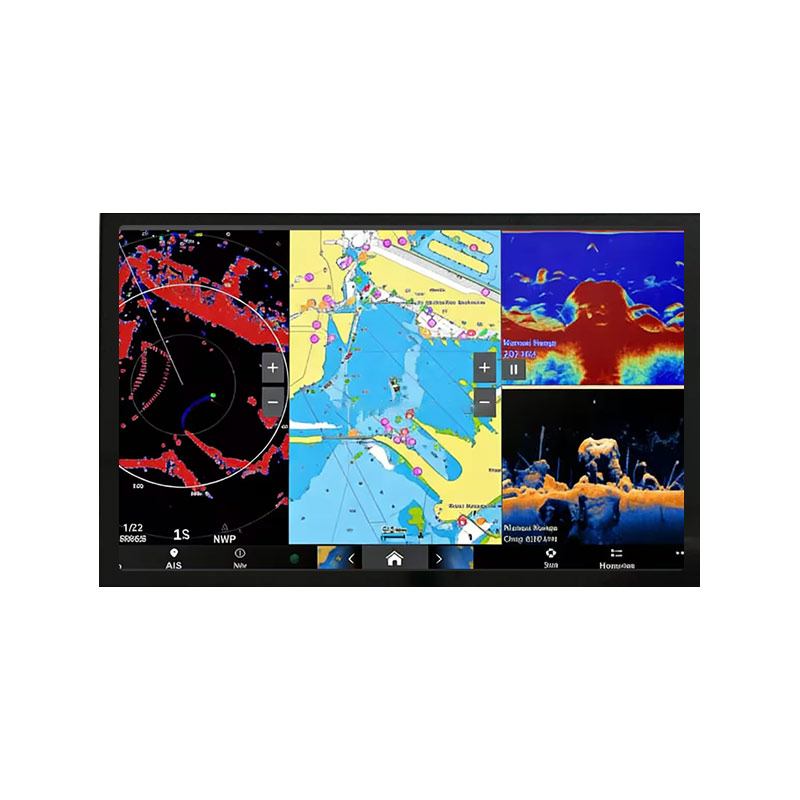

AV128FHT-L12 is a 12.8 inch diagonal a-Si TFT-LCD display screen product from BOE, with a built-in WLED backlight, without backlight driver, touchscreen In-Cell Touch. AV128FHT-L12 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 283.392(W)×159.408(H) mm, outline size of 321.4(W)×181(H)×20.3(D) mm, with surface treament of Antiglare (Haze 5%), Hard coating (3H), Antireflection, net weight of 500g (Typ.). As a ADS, Normally Black, Transmissive LCM product, AV128FHT-L12 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 10K hours, external backlight driver is additionally needed. AV128FHT-L12 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
