EUROTECH Game Console Display Solutions

Ultra-Fast Response | High Refresh Rate | Low Latency | Precision Touch | Custom Integration

At EUROTECH LCD, we specialize in custom Game Console Display solutions, providing high-performance TFT LCD, AMOLED, IPS, and touchscreen integrated display modules for handheld gaming consoles, cloud gaming terminals, retro gaming systems, and next-generation portable entertainment devices.

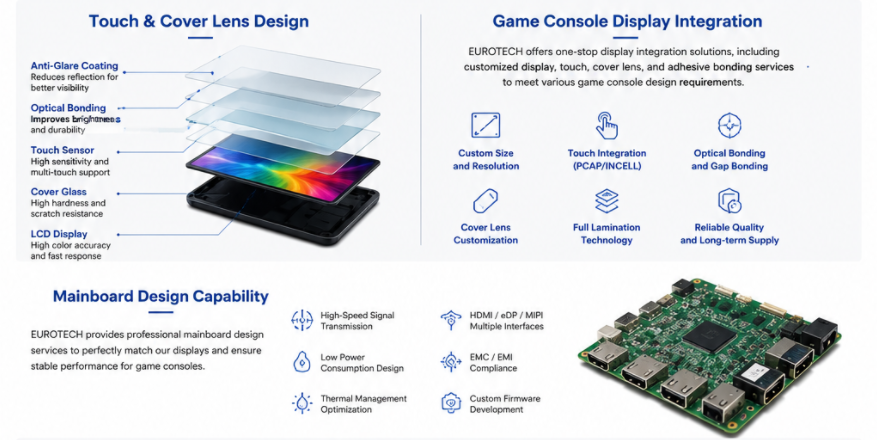

With advanced touchscreen integration, cover lens engineering, embedded mainboard development, and full OEM/ODM manufacturing, EUROTECH delivers complete display solutions designed for modern gaming performance.

Size
Resolution
Interface
SRGB
Operating Temp.
Outline Dim.
Model
Datasheet/Quote
Size: 7" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 157.444×94.81mm
Model: ZS070FHT-L41
Get A Quote
Size: 8" Gaming LCD Display
Resolution: 1920×1200
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 180.2×121.9mm
Model: NS080WUM-LX1
Get A Quote
Size: 11.3" Gaming LCD Display
Resolution: 888×408
Interface: Clockless Link
SRGB: 100%
Operating Temp.: -20~70°C
Outline Dim.: 271.8×133mm
Model: NL8840AC29-01
Get A Quote
Size: 13.3" Gaming LCD Display
Resolution: 1920×1080
Interface: LVDS
SRGB: 100%
Operating Temp.: -20~70°C
Outline Dim.: 309.7×184.1mm
Model: G133HAN01.1
Get A Quote
Size: 13.3" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 94%
Operating Temp.: 0~50°C
Outline Dim.: 300.26×177.89mm
Model: M133NWF3 R1
Get A Quote
Size: 13.4" Gaming LCD Display
Resolution: 1920×1200
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 293.6×189.6mm
Model: LQ134N1JW54
Get A Quote
Size: 13.4" Gaming LCD Display
Resolution: 1920×1200
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 293.6×189.6mm
Model: NE134WUM-N81
Get A Quote
Size: 14" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 307.294×199.246mm
Model: B140QAN03.H
Get A Quote
Size: 14" Gaming LCD Display
Resolution: 1920×1200
Interface: eDP
SRGB: 99%
Operating Temp.: 0~50°C
Outline Dim.: 306.59×198.5mm
Model: NE140WUM-NY1
Get A Quote
Size: 14" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 306.824×205.84mm
Model: NE140QDM-NX2
Get A Quote
Size: 14" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 95%
Operating Temp.: 0~50°C
Outline Dim.: 315.81×197.57mm
Model: LM140LF1F02
Get A Quote
Size: 14" Gaming LCD Display
Resolution: 2880×1800
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 306.54×204.46mm
Model: MNE007ZA1-5
Get A Quote
Size: 15" Gaming LCD Display
Resolution: 1024×768
Interface: LVDS
SRGB: 92%
Operating Temp.: -20~70°C
Outline Dim.: 326.5×253.5mm
Model: G150XNE-L03
Get A Quote
Size: 15" Gaming LCD Display
Resolution: 1024×768
Interface: eDP
SRGB: 92%
Operating Temp.: -20~70°C
Outline Dim.: 326.5×253.5mm
Model: G150XJE-E01
Get A Quote
Size: 15.3" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 334.47×214.92mm
Model: NE153QDM-NZ1
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 350.66×216.15mm
Model: B156HAN12.1
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 350.66×214.72mm
Model: NE156QHM-NY4
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 350.66×216.14mm
Model: N156KME-GNA
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 1366×768
Interface: LVDS
SRGB: 96%
Operating Temp.: -20~70°C
Outline Dim.: 363.8×215.9mm
Model: LQ156T3LW05
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 1920×1080
Interface: LVDS
SRGB: 93%
Operating Temp.: -30~80°C
Outline Dim.: 363.8×215.9mm
Model: G156HCE-LH1
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 95%
Operating Temp.: 0~60°C
Outline Dim.: 351.84×208.88mm
Model: G156HCE-E01
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100
Operating Temp.: 0~50°C
Outline Dim.: 350.66×216.25mm
Model: NV156FHM-N4N
Get A Quote
Size: 15.6" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 350.66×215.54mm
Model: LQ156M1JW06
Get A Quote
Size: 15.6" Gaming OLED Display
Resolution: 2880×1620
Interface: eDP
SRGB: 100%
Operating Temp.: -20~70°C
Outline Dim.: 347.42×202.32mm
Model: ATNA56AC02
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 1920×1200
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×224.42mm
Model: N160JME-GT1
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×224.42mm
Model: NE160QDM-NY1
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×224.42mm
Model: NE160QDM-NM4
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 1920×1200
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×231.92mm
Model: NE160WUM-NX1
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 3840×2400
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×224.42mm
Model: NE160QAM-NX1
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 3200×2000
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×224.42mm
Model: MNG007ZA2-1
Get A Quote
Size: 16" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 349.68×223.92mm
Model: B160QAN02.S
Get A Quote
Size: 16.1" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 361.93×222.59mm
Model: NE161QHM-NY1
Get A Quote
Size: 16.1" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 361.9×222.59mm
Model: NV161FHM-NY3
Get A Quote
Size: 17" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 372.84×240.41mm
Model: NE170QDM-NZ1
Get A Quote
Size: 17" Gaming OLED Display
Resolution: 2880×1620
Interface: eDP
SRGB: 100%
Operating Temp.: -30~85°C
Outline Dim.: 382.33×220.97mm
Model: AMSA70FD01-0
Get A Quote
Size: 17.3" Gaming LCD Display
Resolution: 3840×2160
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 389.89×238.31mm
Model: NE173QUM-NY1
Get A Quote
Size: 17.3" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 389.89×238.31mm
Model: N173HCE-G33
Get A Quote
Size: 17.3" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 389.89×238.012mm
Model: NV173FHM-NY1
Get A Quote
Size: 17.3" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 389.89×238.01mm
Model: NE173QHM-NY3
Get A Quote
Size: 17.3" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 389.89×238.31mm
Get A Quote
Size: 18" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 394.76×253.75mm
Model: NE180QDM-NZ2
Get A Quote
Size: 18" Gaming LCD Display
Resolution: 2560×1600
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 394.26×264.3mm
Model: N180GME-GAA
Get A Quote
Size: 19" Gaming LCD Display
Resolution: 1280×1024
Interface: LVDS
SRGB: 100%
Operating Temp.: -15~65°C
Outline Dim.: 396×323.5mm
Model: LQ190E1LW61
Get A Quote
Size: 19" Gaming LCD Display
Resolution: 1280×1024
Interface: LVDS
SRGB: 100%
Operating Temp.: -20~70°C
Outline Dim.: 396×323.5mm
Model: LQ190E1LX65
Get A Quote
Size: 23.8" Gaming LCD Display
Resolution: 1920×1080
Interface: LVDS
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 535×313mm
Model: MV238FHM-NG0
Get A Quote
Size: 23.8" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 534.9×307mm
Model: LM238WF7-SSA1
Get A Quote
Size: 23.8" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 94%
Operating Temp.: 0~50°C
Outline Dim.: 535×313mm
Model: MV238QHM-NF0
Get A Quote
Size: 24.1" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 552.49×319.58mm
Model: M241HTN01.2
Get A Quote
Size: 24.5" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 99%
Operating Temp.: 0~50°C
Outline Dim.: 552.49×319.58mm
Model: M250HAN03.0
Get A Quote
Size: 24.5" Gaming LCD Display
Resolution: 1920×1080
Interface: LVDS
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 552.49×319.58mm
Model: M250HAN01.B
Get A Quote
Size: 25.2" Gaming LCD Display
Resolution: 1440×1920
Interface: LVDS
SRGB: /
Operating Temp.: /
Outline Dim.: 408×536mm
Model: LQ252B1LX01
Get A Quote
Size: 27" Gaming LCD Display
Resolution: 1920×1080
Interface: LVDS
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 607.13×354.11mm
Model: M270HCA-L7B
Get A Quote
Size: 27" Gaming LCD Display
Resolution: 3840×2160
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 608.8×355.3mm
Model: ME270QUM-NF5
Get A Quote
Size: 27" Gaming LCD Display
Resolution: 3840×2160
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 609.1×355mm
Model: M270QAN07.0
Get A Quote
Size: 27" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 608.78×355.13mm
Model: M270KCA-E8B
Get A Quote
Size: 27" Gaming LCD Display
Resolution: 1920×1080
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 608.8×355.13mm
Model: MV270FHM-NF4
Get A Quote
Size: 27" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 608.8×355.13mm
Model: MV270QHM-NF1
Get A Quote
Size: 32" Gaming LCD Display
Resolution: 3840×2160
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 721.88×417.87mm
Model: M320QAN02.6
Get A Quote
Size: 32" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: -5~60°C
Outline Dim.: 709.14×417.75mm
Model: MV315QHM-N50
Get A Quote
Size: 32" Gaming LCD Display
Resolution: 2560×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~60°C
Outline Dim.: 709.15×417.75mm
Model: LM315WQ1-SSB1
Get A Quote
Size: 34" Gaming LCD Display
Resolution: 3440×1440
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 809.55×354.7mm
Model: LM340UW8-SSC1
Get A Quote
Size: 38" Gaming LCD Display
Resolution: 3840×2160
Interface: eDP
SRGB: 100%
Operating Temp.: 0~50°C
Outline Dim.: 855.8×495mm
Model: M380DCA-E7B
Get A Quote
Get in Touch:

Design ingenuity. Manufacturing agility and scale. Supply chain innovation.
No matter how complex or demanding the project, we're helping today's technology innovators solve it.
Get started with a trusted partner...
Name*
Job title
Companu name
Email*
Phone
Message
Game Console Display

Why High-Performance Displays Matter in Game Consoles

A game console display is more than just a screen—it directly affects:
Visual smoothness
Input response speed
Motion clarity
Color accuracy
Touch precision
Battery efficiency
User immersion

Modern gaming devices require displays optimized for:
Fast-paced action games
Open-world rendering
Competitive eSports
Cloud streaming platforms
AR/VR gaming ecosystems

EUROTECH develops displays specifically engineered for these high-demand gaming environments.

Key Features of Game Console Displays

1. High Refresh Rate for Smooth Gameplay
Refresh rate determines motion fluidity.
EUROTECH supports:
60Hz Standard Gaming
90Hz Enhanced Performance
120Hz Competitive Gaming
144Hz Ultra-Smooth Motion
Benefits:
Reduced motion blur
Faster frame transitions
Lower visual latency
Better gaming experience
Perfect for:
FPS gaming
Racing games
Fighting games
Cloud gaming

2. Ultra-Low Latency Response
Low latency is essential for precision control.
Our display solutions deliver:
Fast touch sampling
Rapid image response
Low signal transmission delay
Optimized controller synchronization
Ideal for:
Competitive gaming devices
Portable eSports consoles
Real-time multiplayer systems

3. Wide Color Gamut & High Contrast
Visual quality defines immersion.
EUROTECH supports:
100% sRGB
DCI-P3 wide color gamut
High contrast IPS
AMOLED true black technology
Benefits:
Richer colors
Deeper blacks
Better HDR effects
Improved scene realism
Perfect for AAA gaming experiences.

4. High Resolution for Enhanced Detail
We support multiple resolutions:
HD (1280×720)
Full HD (1920×1080)
2K
4K UHD
Higher resolution improves:
Game UI clarity
Texture sharpness
Scene details
Reading comfort
Ideal for:
Portable gaming consoles
Premium handheld devices
Streaming gaming terminals

5. Wide Viewing Angle IPS Technology
IPS panels provide:
178° viewing angles
Stable brightness
Better color consistency
Improved multi-angle gameplay
Perfect for:
Multiplayer sharing
Console docking systems

Portable outdoor gaming

Touchscreen & Cover Lens Engineering for Game Consoles

Touch interaction is becoming increasingly important in modern gaming.
EUROTECH provides:

PCAP Touch Integration
Supports:
Multi-touch gestures
Fast touch response
High precision control
Waterproof touch tuning
Glove touch support
Perfect for:
Game menus
Character controls
Gesture interactions
Mobile gaming systems

Custom Cover Lens Design
We offer:
Anti-Glare (AG)
Anti-Reflection (AR)
Anti-Fingerprint (AF)
Scratch-resistant glass
Chemically strengthened cover glass
Benefits:
Better visibility
Higher durability
Better touch sensitivity
Premium product appearance

Optical Bonding Technology
Advantages:
Reduced reflection
Better sunlight readability
Enhanced contrast
Improved structural durability
Especially important for outdoor gaming and portable devices.

Complete Game Console Display Integration Solutions
EUROTECH offers full integration services:
LCD + Touch Panel + Cover Glass
Full Lamination
Driver Board Integration
Flexible Cable Design
Mechanical Structure Matching
Customized Display Assembly
Our one-stop integration improves:
Faster product development
Better assembly efficiency
Higher product consistency
Lower manufacturing cost

Embedded Mainboard Design for Game Console Displays

Display performance depends on system-level optimization.
EUROTECH provides custom embedded board design with:

High-Speed Signal Processing
Supports:
HDMI
MIPI
eDP
LVDS
RGB
SPI

Low Power Optimization
Improves:
Battery life
Thermal control
Portable performance

Custom Firmware Development
Supports:
Touch tuning
Display driver optimization
UI acceleration
Gaming signal synchronization

This ensures full compatibility with modern game console architectures.

EUROTECH R&D and Manufacturing Excellence

With over 20+ years of LCD display engineering experience, EUROTECH offers complete in-house capabilities:

R&D Capabilities
LCD design
AMOLED integration
Touchscreen engineering
Optical bonding
Mechanical customization
Embedded system development

Manufacturing Strength
Automated production lines
Precision assembly
Quality inspection systems
Reliability testing
Long-term supply stability

Global OEM/ODM Support
We serve customers in:
Consumer electronics
Gaming devices
Industrial HMI
Medical systems
Smart wearable devices

Applications of Game Console Displays

EUROTECH display solutions are ideal for:
Handheld gaming consoles
Retro gaming systems
Cloud gaming terminals
Portable streaming devices
Gaming controller displays
AR gaming devices
VR portable displays
eSports handheld devices

Why Choose EUROTECH for Game Console Display Solutions?
High Refresh Rate LCD & AMOLED
Low Latency Touch Solutions
Custom Cover Lens Design
Optical Bonding
Embedded Driver Board Development
Full Display Assembly Integration
OEM/ODM Manufacturing Support
Stable Long-Term Supply

EUROTECH helps gaming brands build faster, smarter, and more immersive next-generation gaming devices.

Get in touch Contact Us
Eurotech is a worldwide leading display technology company focused on advanced innovative visual technology systems in high-growth markets, with deep understanding of the needs of the modern technology world..
Follow Us:

Contact us

Tel:(852) 6942 7360
Tel:(86) 755 8395 2292
E-mail:lcdsource@eurotech-lcd.com
E-mail:info@eurotech-ic.com
ShenZhen office:Building A, Jinfeng Zhihui Valley, No. 45, Yonghe Road, Bao'an District,Shenzhen
HK office:Unit 1003-1004,10/F, Block4, Nam Fung Industrial City, 18 Tin Hau Road,Tuen Mun, HONGKONG
For Blog Updates

Subscribe to get the latest relevant information.Fill in your info.
© Eurotech All Rights Reserved
